ITM G80 Lifting Point, Oblong Eye Bolt, M16, 2.24 T

• Premium-grade heat treated alloy steel

• Specifications, batch and brand markings as per Australian Standards requirements

• Tested and certified to AS 3776 Specifications:

• W.L.L. 0°: 2.24T

• W.L.L. 90°: 1.12T

• Thread: M16

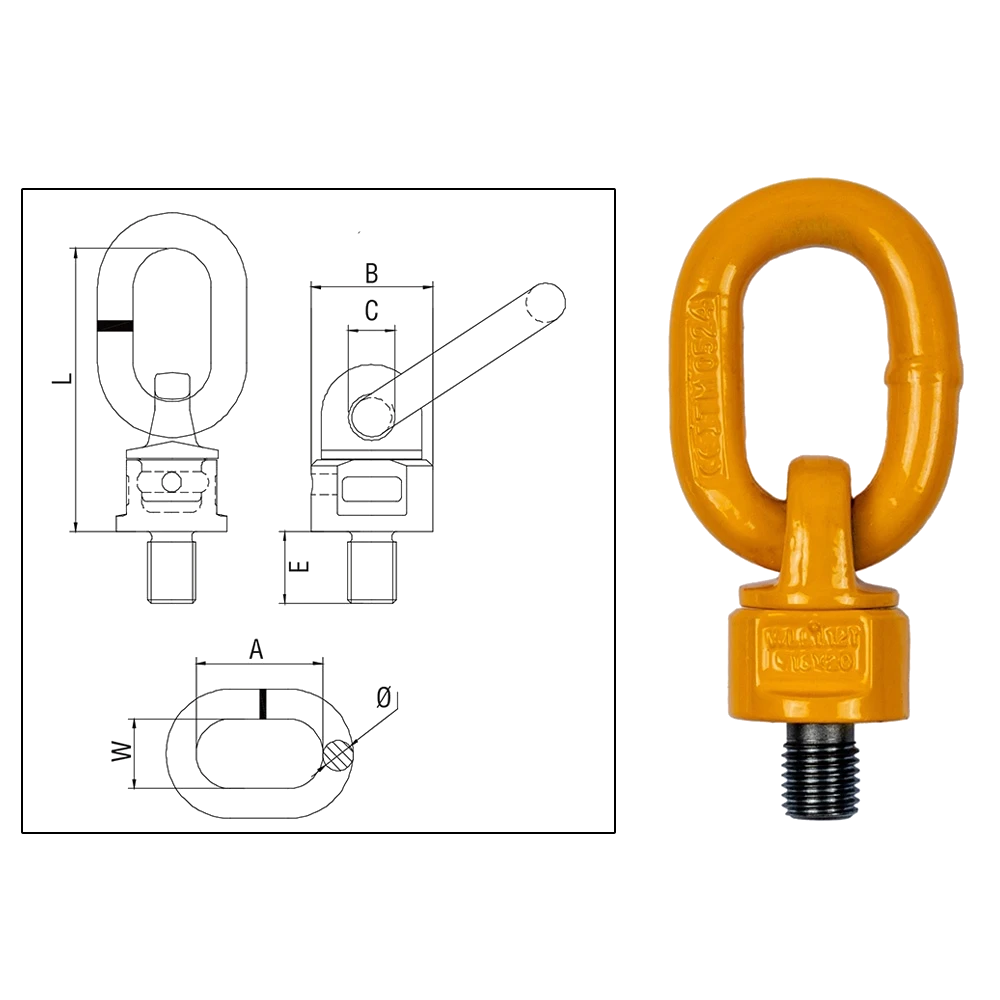

• Dimension: A: 55mm B: 36mm C: 16mm E: 20mm L: 97.5mm W: 30mm Ø: 14mm
