Description
Traditional tube with powerful performance.
The Stellar 3.0 Thermal Scopes feature high-resolution detectors (up to 1280 × 1024),
2560 × 2560 OLED displays, and NETD<15 mK sensitivity. With up to 3100 m detection
range, built-in laser rangefinder, ballistic calculation, and 10-hour battery life, they offer
precision and reliability for field and forest hunting.
Specifications

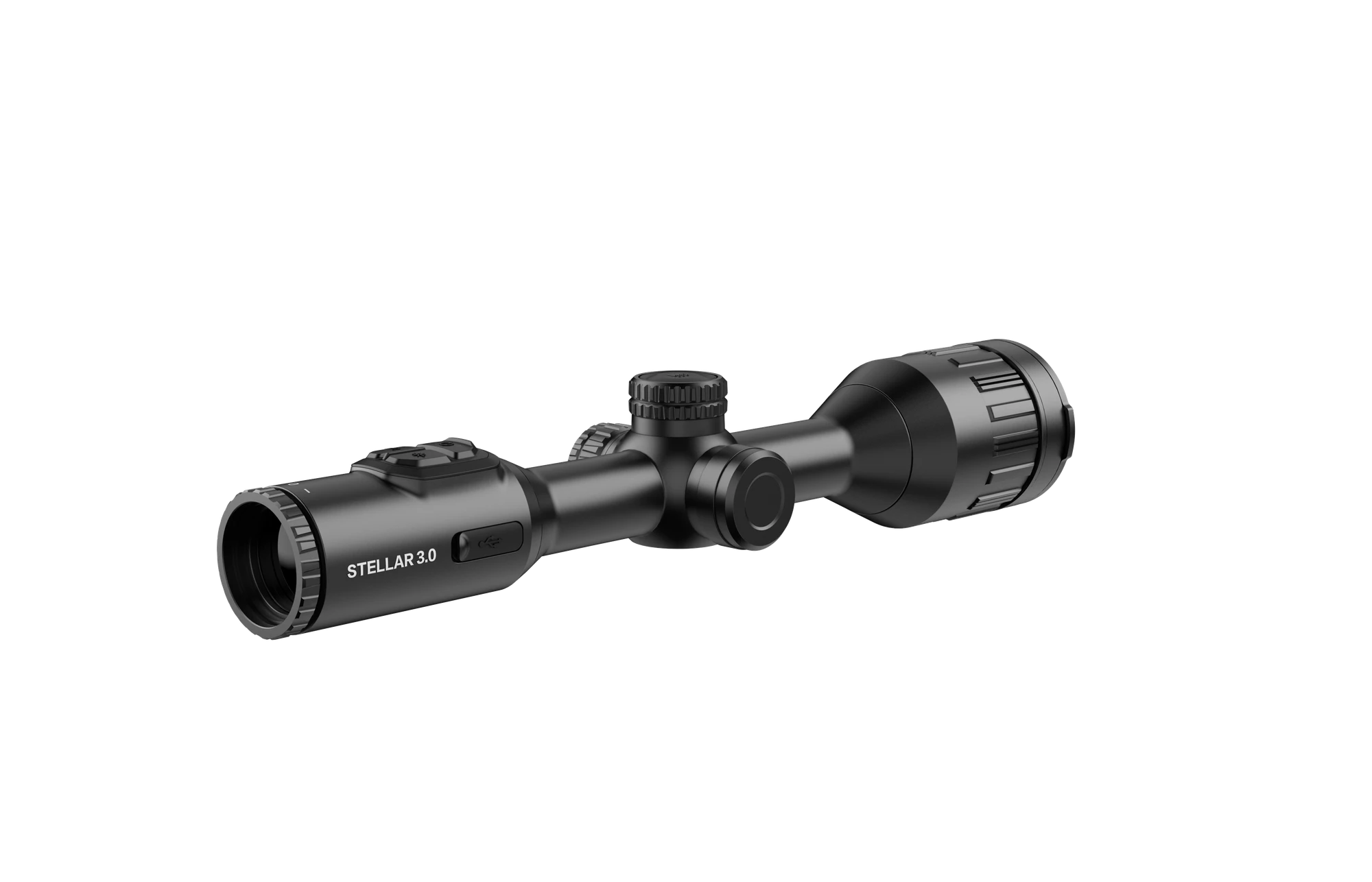

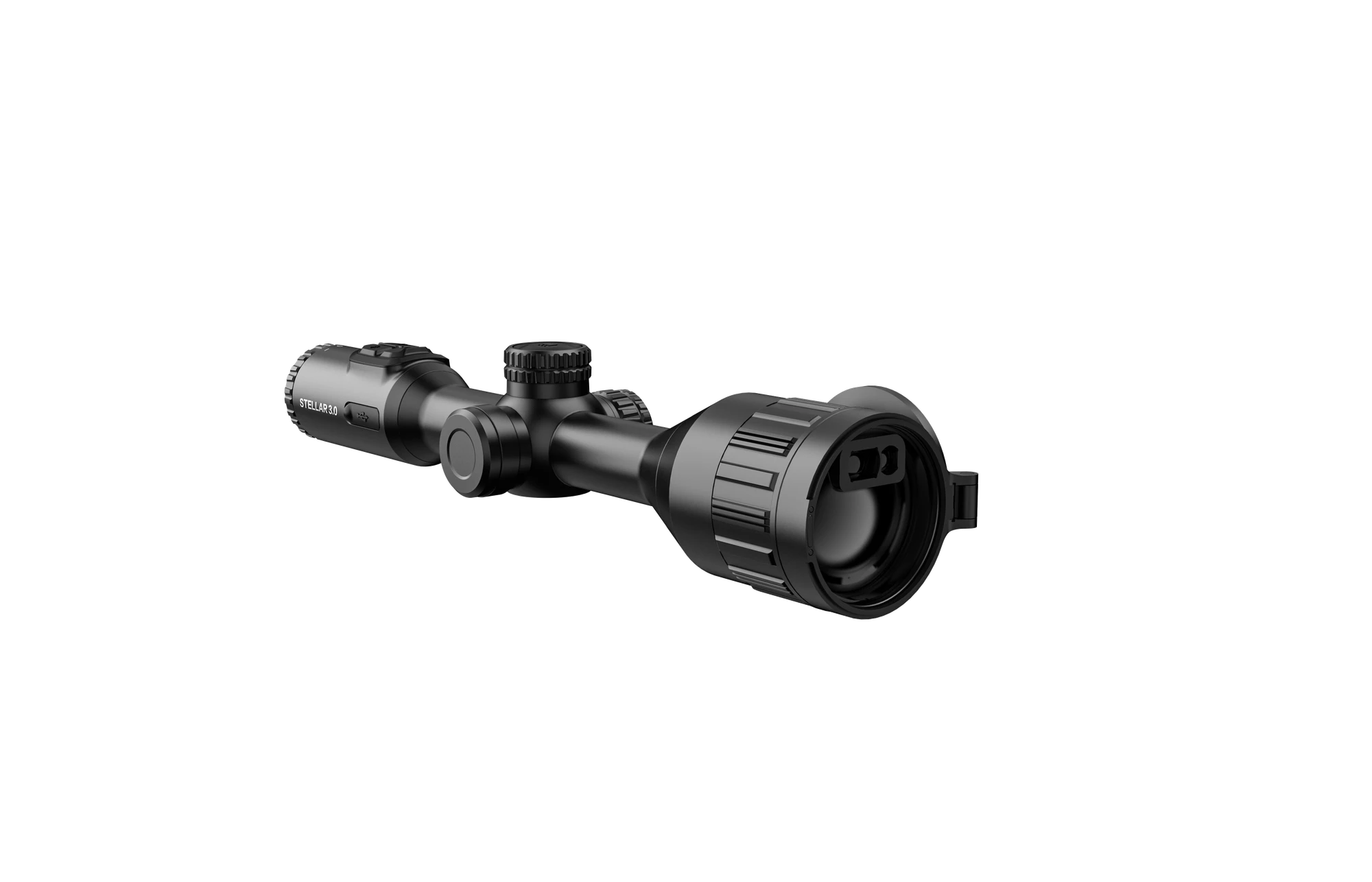

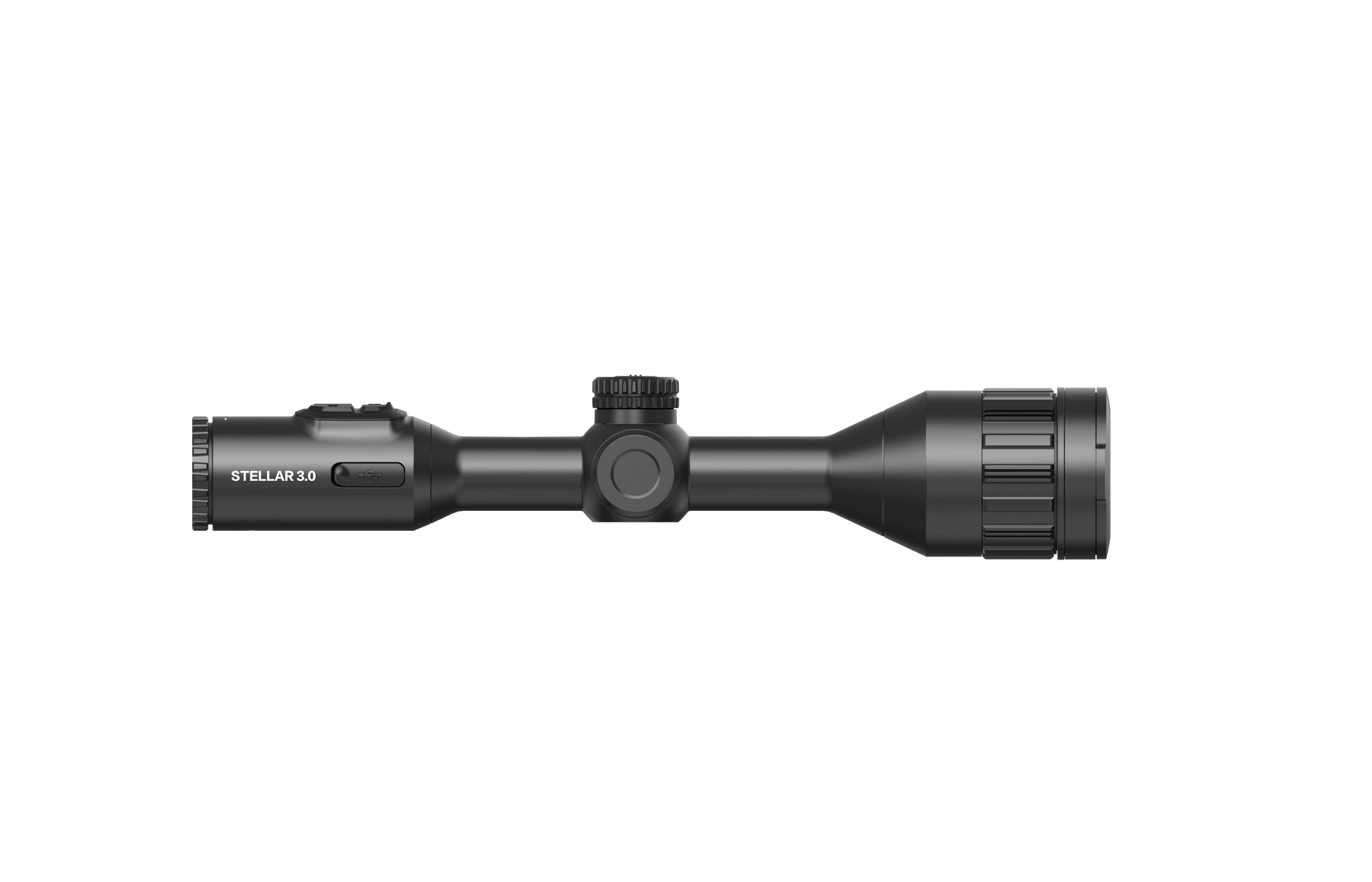

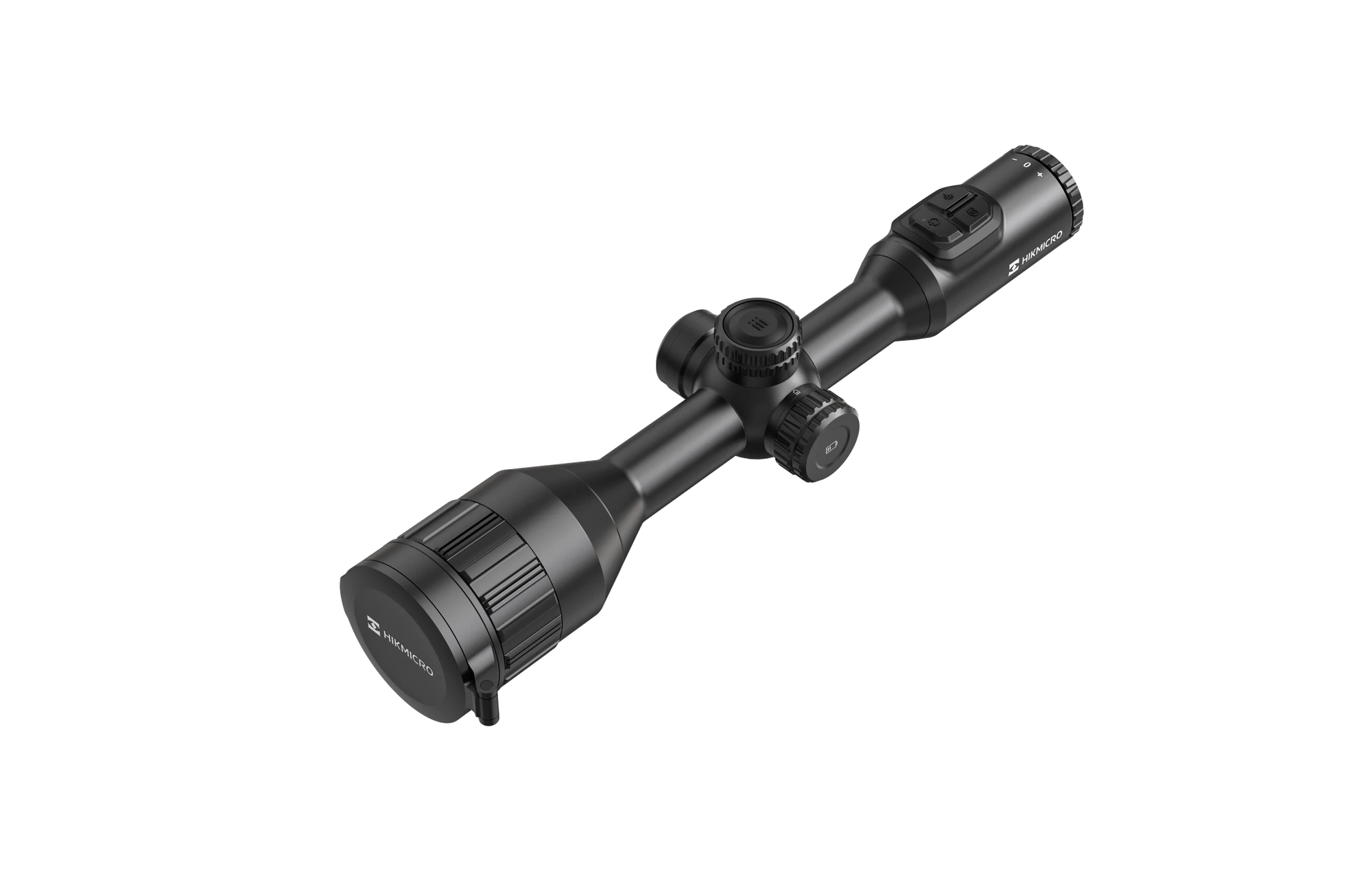

HIKMICRO STELLAR SQ50L 3.0 Thermal Scope is equipped with a 640 × 512 @12 μm thermal detector, with much higher sensitivity (NETD<15 mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless.
Key Features
- 640 × 512 Resolution @12 μm thermal detector
- High sensitivity
Thermal Module NETD<15 mK (@25°C, F# = 1.0)
- 50 mm, F1.0 lens with detection range up to 2600 m
- 2560 × 2560 Resolution 1.03-inch OLED display
- HIKMICRO Shutterless Image
System (HSIS)
laser rangefinder up to 1000 m, with ballistic calculation
- Rechargeable internal batteries and external battery, 9h continuous operation
- High shock resistance up to 1000 g/0.4 ms
Specification
Laser Rangefinder
- LRF Module in Lens: Yes
- Safety Class for Laser: Class 1
- Wavelength: 905 nm
- Max. Measuring Range: 1000 m
- Measurement Accuracy: ±1 m
- Min. Measuring Range: 10 m
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 640 × 512
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 15 mK (@25°C, F# = 1.0)
- Lens (Focal Length): 50 mm, F1.0
- Focus Mode: Focus Ring
- Detection Range: 2600 m
- Min. Focusing Distance: 5 m
- Magnification: 3.6× to 26.6×, Support 1× step value of continuous zooming
- Field of View(H×V), Degrees / m @100 m: 8.8° × 7.0°/15.4 m × 12.3 m
Image Display
- Display: 2560 × 2560, 1.03-inch OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6 mm
- Eye Relief: 45 mm
- Diopter (Range): -4D to 4D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
- Zoom Pro: Yes
- Image Pro 2.0: Yes
- HSIS (HIKMICRO Shutterless Image
System
- Record Video: On-board Video Recording
- Capture Snapshot: Yes
- Audio Recording: Yes
- Recoil-Activation Recording: Yes
- Standby Mode: Yes
- Storage: Built-in EMMC (64 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Zeroing Profiles: 5
- Freeze Zeroing: Yes
- Max. Recoil: 1000 g/0.4 ms
- Ballistic Calculation: Yes
- Local Album: Yes
Power Supply
- Battery Type: Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
- Battery Operating Time: 9 hours continuous running (@-25°C, Zoom Pro, LRF on)
- Type-C
Power Supply: DC 5 V/2 A, USB Type-C interface supports QC3.0
- Only the built-in battery will be charged via the type-C cable. Use the battery charger to charge the external battery
General
- Protection Level: IP67
- Mounting Standard: 30 mm
- Dimension: 422.5 mm × 88.4 mm × 74.5 mm
- Working Temperature: -30°C to 55°C (-22°F to 131°F)
- Weight: 860 g without external battery
- Center Height: 36 mm
Product Code:SQ50L 3.0
Barcode:6974004646301
Brand:Huntsman Optics
Type:Scopes
Availability:In Stock
