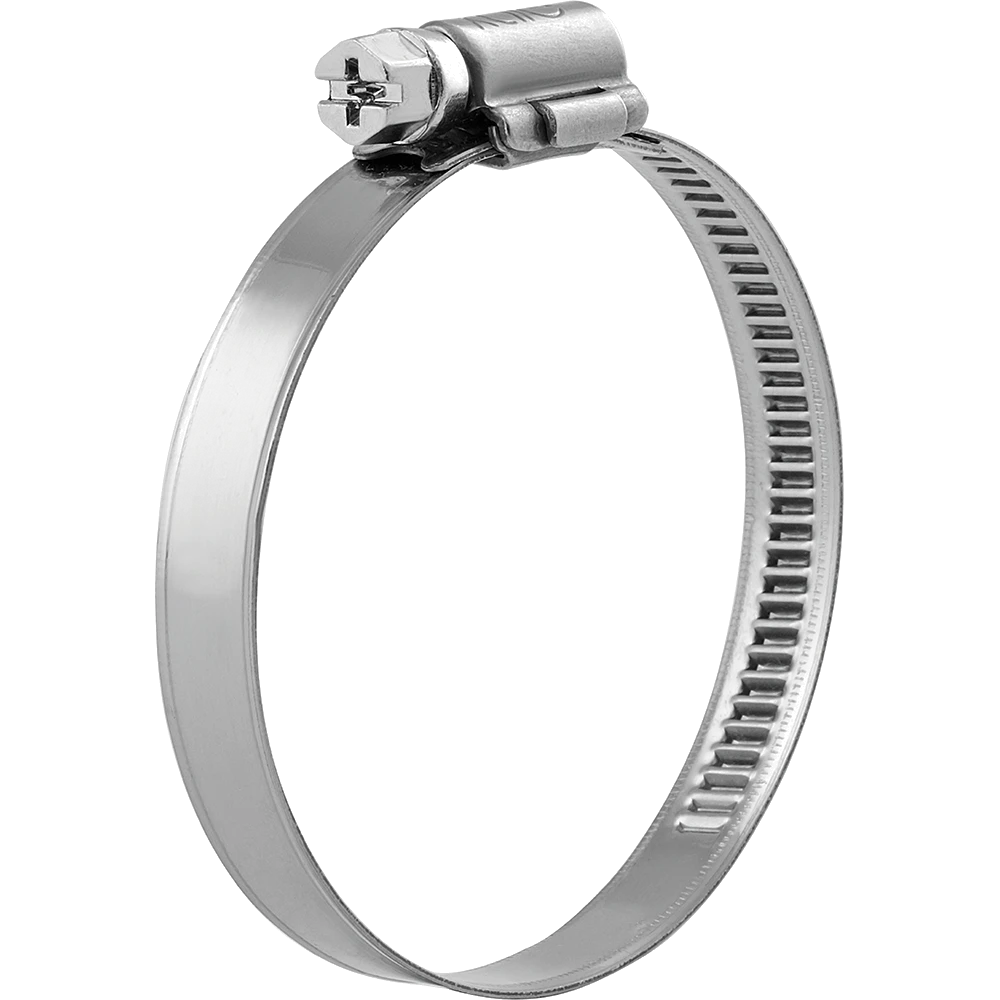

WD - Worm Drive Clamps WD91220W4 - 9mm Band Width Worm Drive Clamp WD9 | 12-20mm capacity | W4 Features:

• Light product, easy assembly and space saving with compact housing and screw design.

• Stronger and durable with the mechanically locked single piece design of housing.

• Burr-free and convex band edges.

• 100% traceability on the product.

• High clamping force with low tightening torque. Technical Spec:

• Band Width - 9mm

• Capacity (min - max) - Ø 12-20mm

• Tightening Torque (max) - 2.5Nm (1)

• Screw Housing Length - 20mm

• Grade W4 - Stainless Screw, Band & Housing (2)

• Corrosion Resistance (min.Hour) IS0 9227 - 240

• Screw Head - PH/FL | 7mm Hex (1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm (2) Screw - 1.4567 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4301 Stainless DIN EN-10088-2 or equivalent KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
