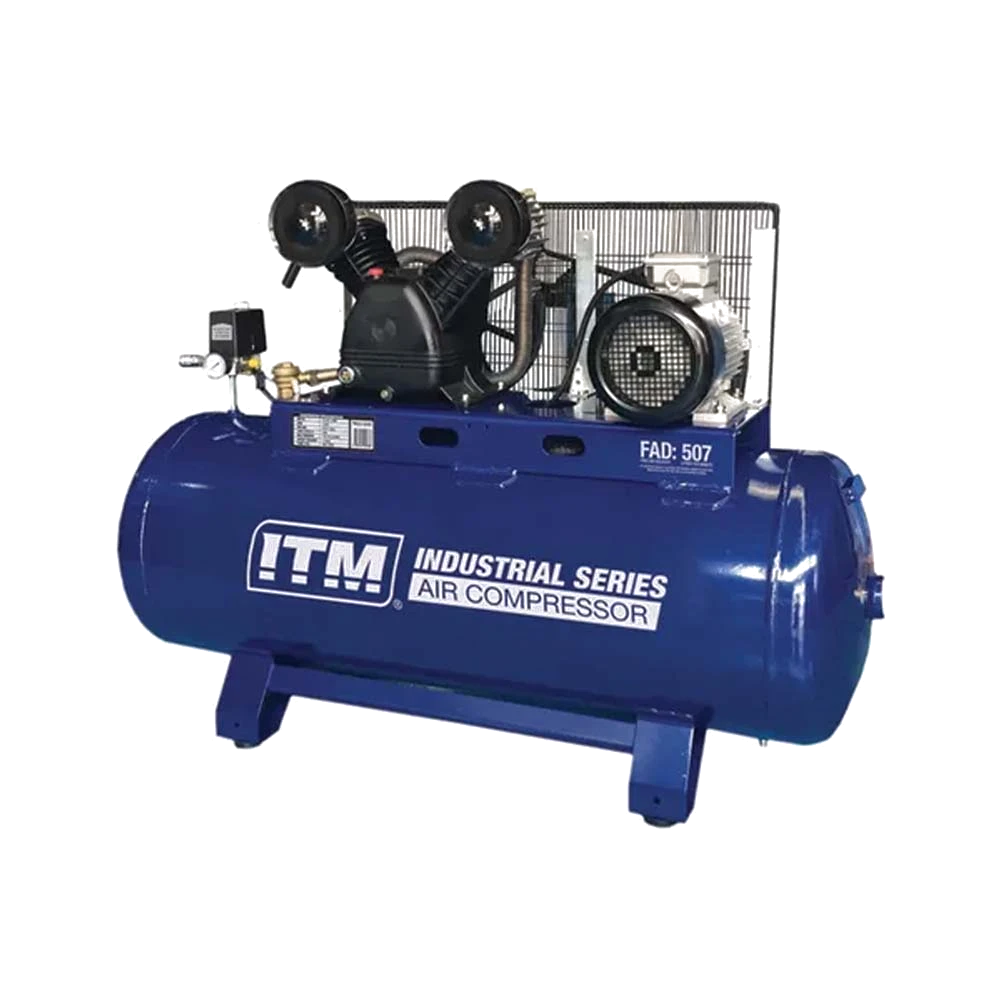

Fad 507 L/Min TM353-55200 | ITM Air Compressor Stationary 5.5HP | 200L | 3 Phase FEATURES

• Twin cast iron cylinder oil lubricated pump with aluminium head.

• Powerful high efficiency induction motor.

• Soft start valve for electric motor protection.

• Thermal overload protection with manual reset.

• Full brass non-return valve.

• Certified safety valve.

• Reliable Condor pressure switch.

• Includes twin outlet one-touch “Nitto style” connectors. SPECIFICATIONS

• Motor: 5.5HP - Three Phase 415V

• Tank Capacity: 200 L

• Max Pressure: 147 PSI (10 Bar)

• Pump Displacement: 605 L/min (21.4 CFM)

• Free Air Delivery: 507 L/min (17.9 CFM)

• Pump RPM: 860

• Package Dimensions: 146cm L x 57cm W x 124cm H

• Compressor Dimensions: 138cm L x 48cm W x 103cm H
