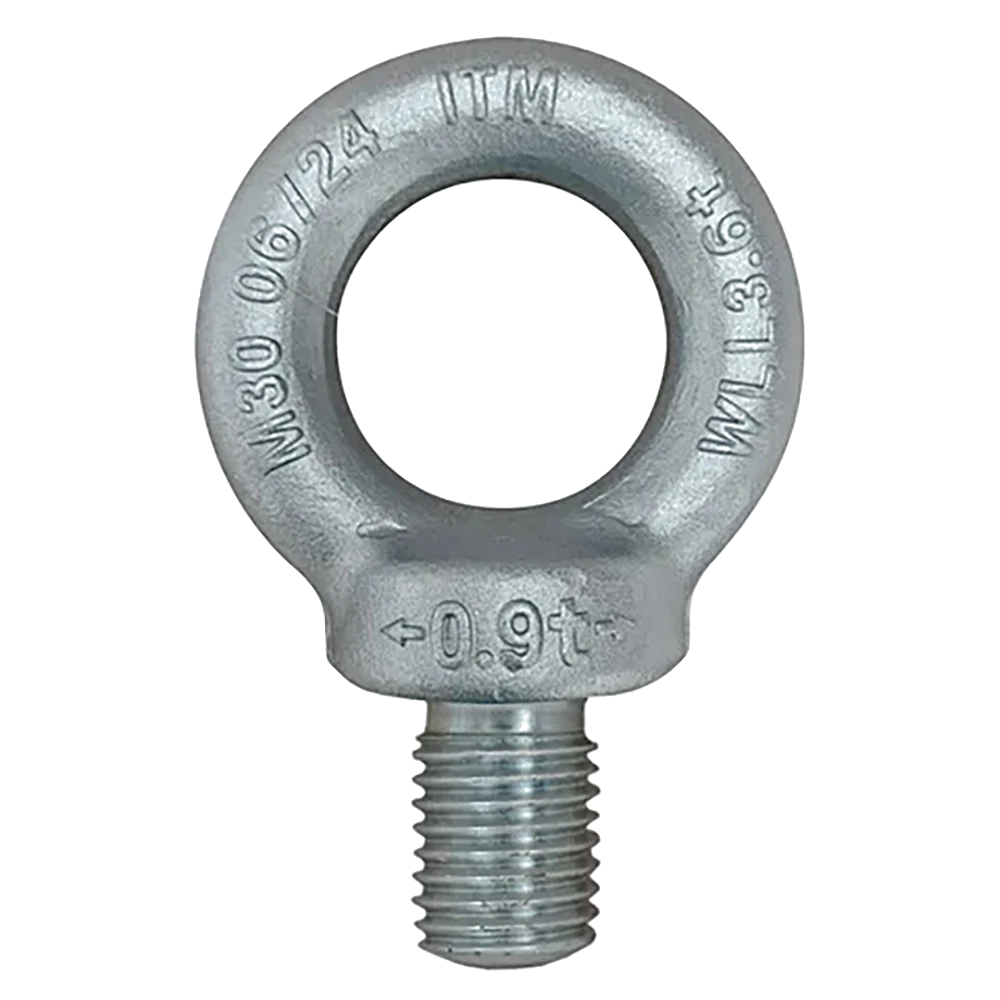

ITM Lifting Shoulder Eyebolt Din 580 - 30mm - 3.6T Features

• Galvanised finish

• Specifications, batch and brand markings as per Australian Standards requirements

• Tested and certified to AS 2317 Specifications

• Thread: M30

• W.L.L (t): 3.6

• Dimension D (mm): 30

• Dimension D1 (mm): 60

• Dimension D2 (mm): 65

• Dimension D3 (mm): 24

• Dimension H (mm): 109

• Dimension H1 (mm): 45

• Dimension W (mm): 108
