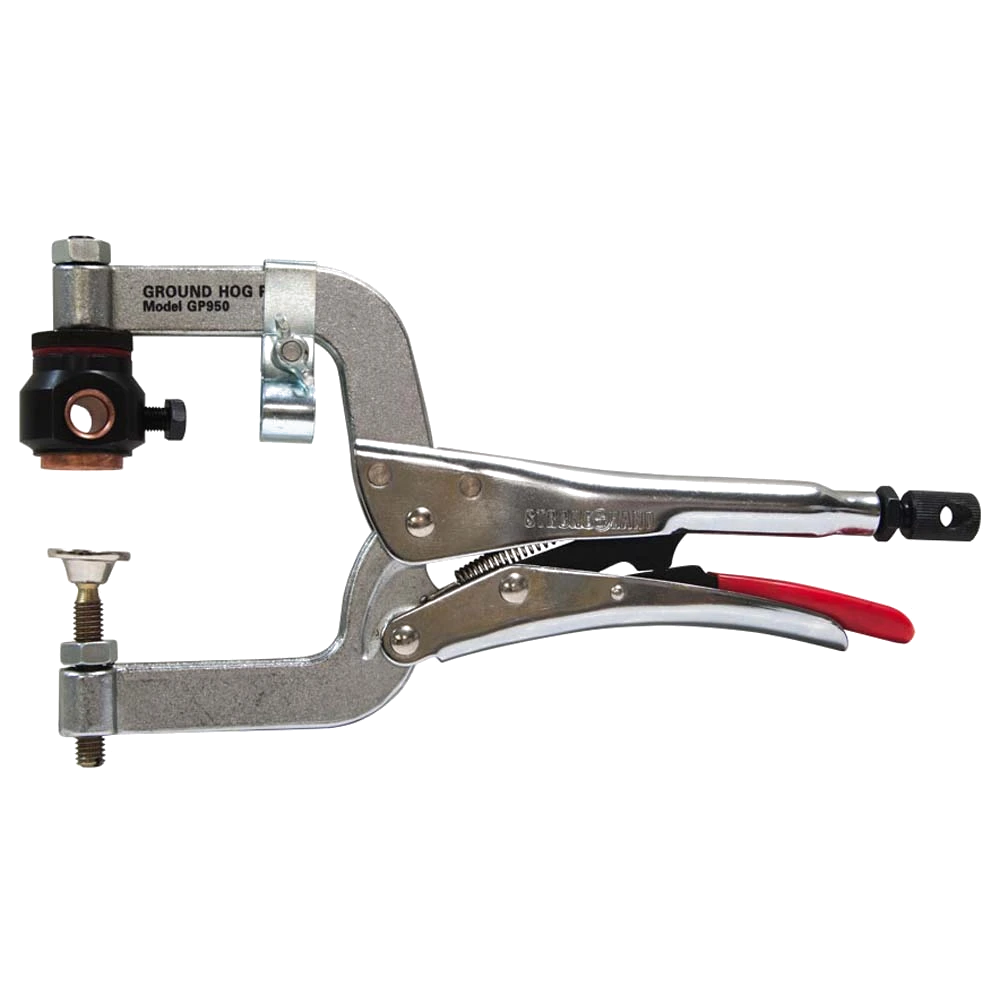

Stronghand Ground Hog Clamp - 450A Grounding Clamps High clamping pressure improves arc stability and reduces power consumption. The groove design on the copperhead seals out weld spatter and reduces particle buildup. Side screw provides a secure cable connection. Ground Hog body rotates for cable positioning.

• Rated at 450 AMPS @ 60% duty cycle (with 2/0 cable)

• Prevents current restriction and allows complete current transfer.

• Controls the electrical current by isolating the contact surface and the cable connection.

• Improve arc stability and cable life, and reduce power consumption. Specifications:

• Amperage / Cable Size: 450A / 2/0 – 0.427?

• Throat Depth: 89 mm

• Max. Capacity: 64 mm

• Tapped Hole: M10

• Clamping Pressure: 180 kg

• OAL: 280 mm

• Weight: 1.1 kg
