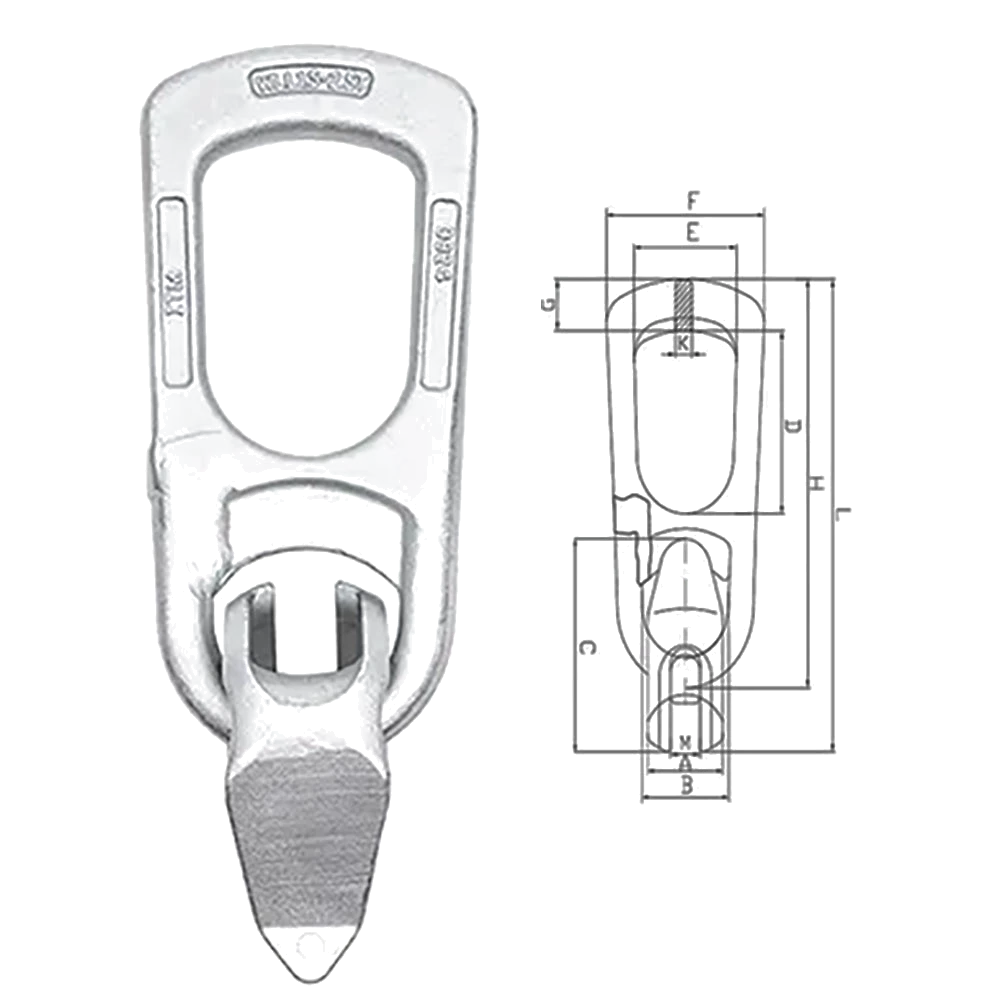

ITM Concrete Lifting Clutch Panel Lifter 10T Features

• Specifically designed for lifting precast concrete elements with an embedded pin

• Easily engages under load, ensuring proper connection

• Simple clutch release when lifting completed

• Available in working load limits ranging from 1.3t to 20t

• Tested and certified to AS 3850.1 Specifications

• W.L.L. (t): 10

• B.L. (t): 40

• Dimension A (mm): 73

• Dimension B (mm): 92

• Dimension C (mm): 176

• Dimension D (mm): 116

• Dimension E (mm): 83

• Dimension F (mm): 161

• Dimension H (mm): 342

• Dimension M (mm): 30

• Dimension L (mm): 391

• Dimension G (mm): 51

• Dimension K (mm): 27

• Weight (kg): 9.13
