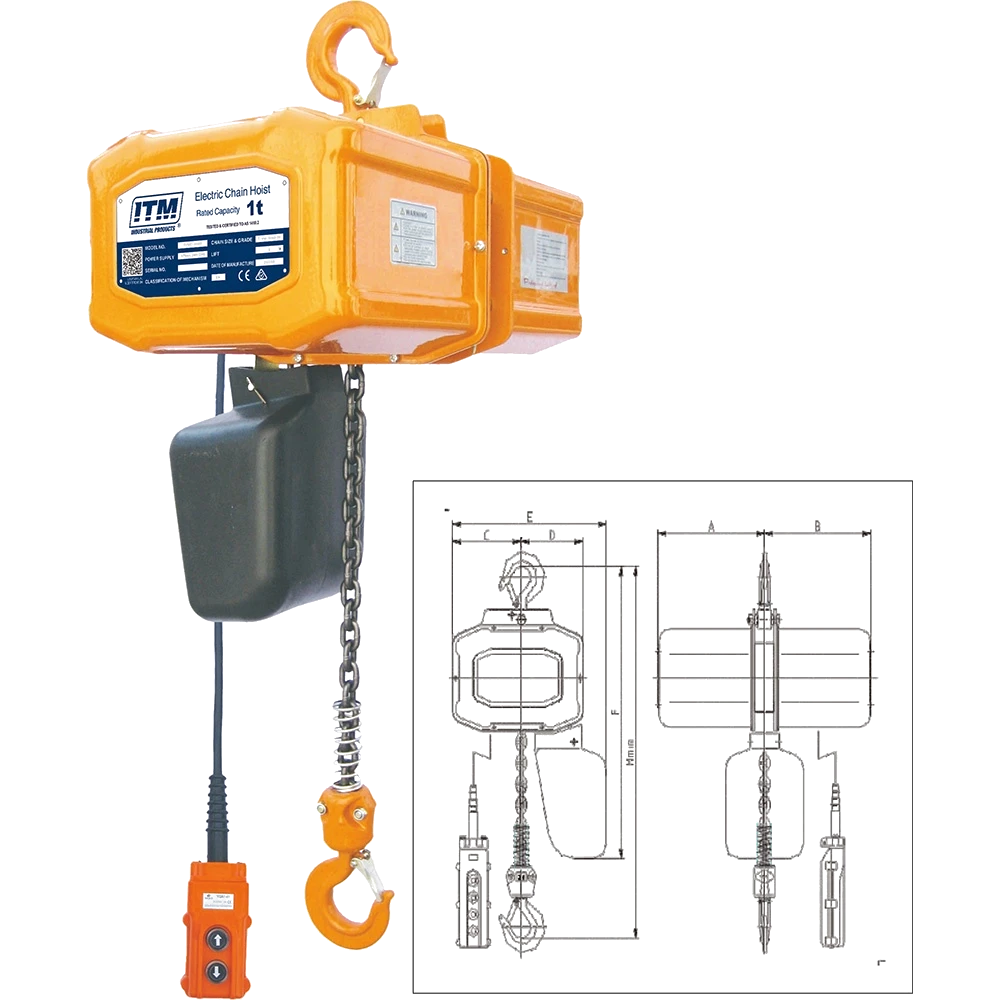

ITM 240V Electric Hoist, 1 Ton, 3 Meter Lift Features

• Japanese technology with dual braking system to ensure safe and reliable operation

• Compact and light weight design

• Weight overload limiter for safety

• Thermal overload motor protection

• Single phase, 240V motor

• Upper and lower limit switches to prevent chain runout

• Chain length can be altered by ITM to your required length

• Tested & certified to AS 1418.2

• Test certificate & user manual supplied

• Replacement Chain 7.1mm TM9810-01607-1 Specifications

• Rated Capacity: 1 Tonne

• Standard Lift: 3m

• Running Test Load: 12.5kN

• Motor: 1200w 240v 1P

• No. of Chain Drops: 1

• Chain Type: Grade 80 7.1mm

• Lift Speed: 6m/min

• Net Weight: 60kg

• Extra Weight Per Metre Of Extra Lift: 1.1kg Dimensions (mm)

• A: 245

• B: 245

• C: 158

• D: 142

• E: 350

• F: 600

• H: 520
