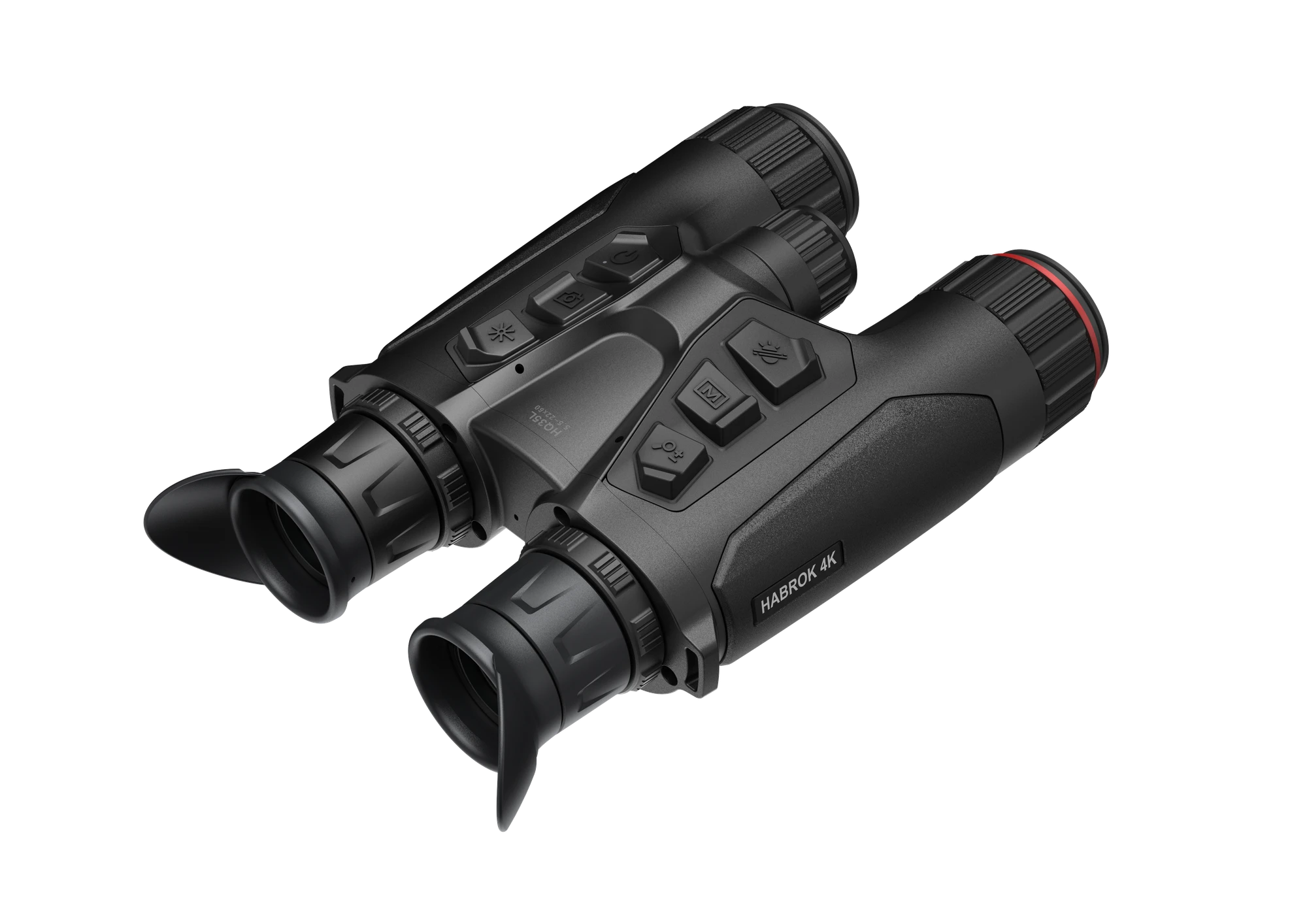

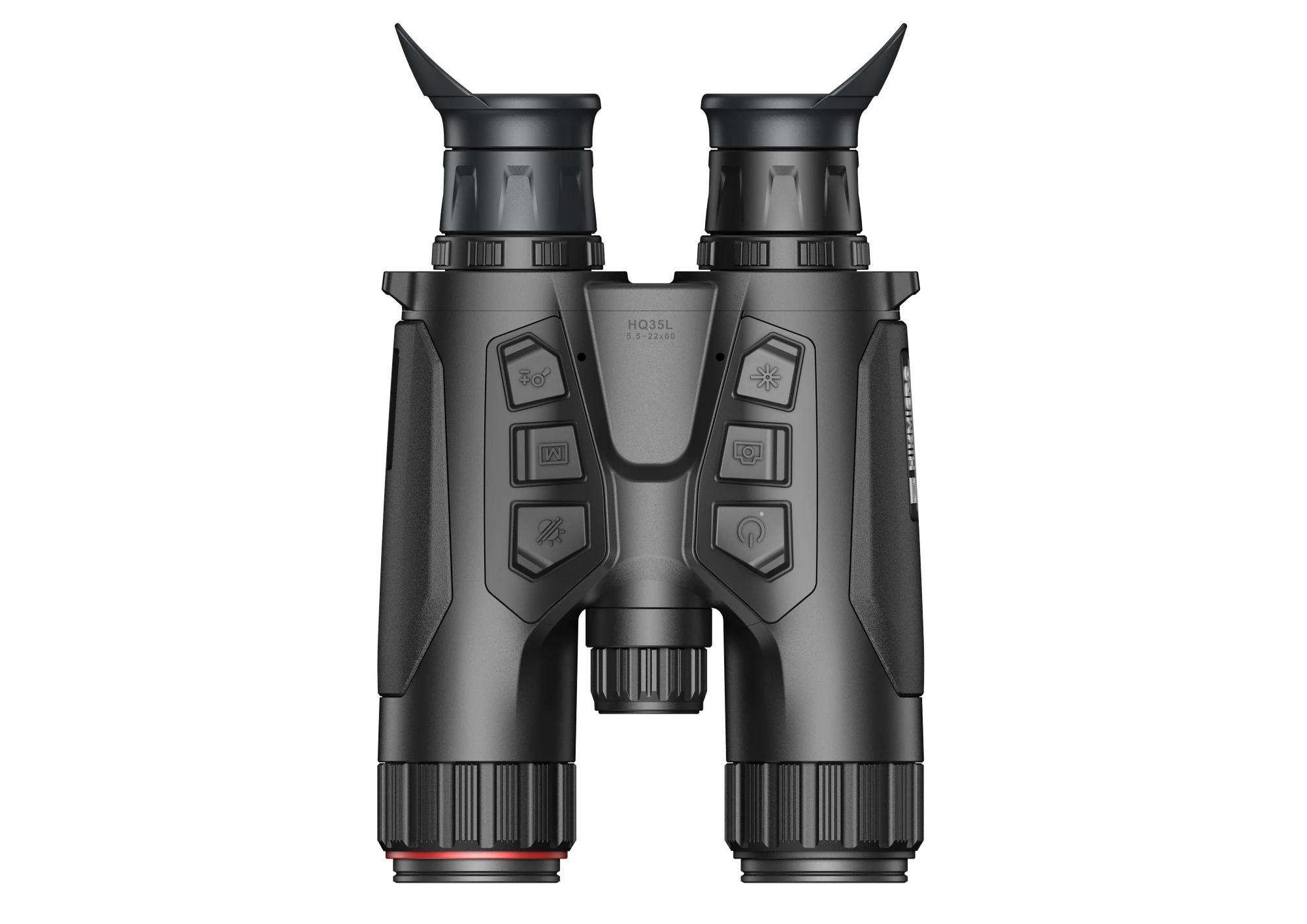

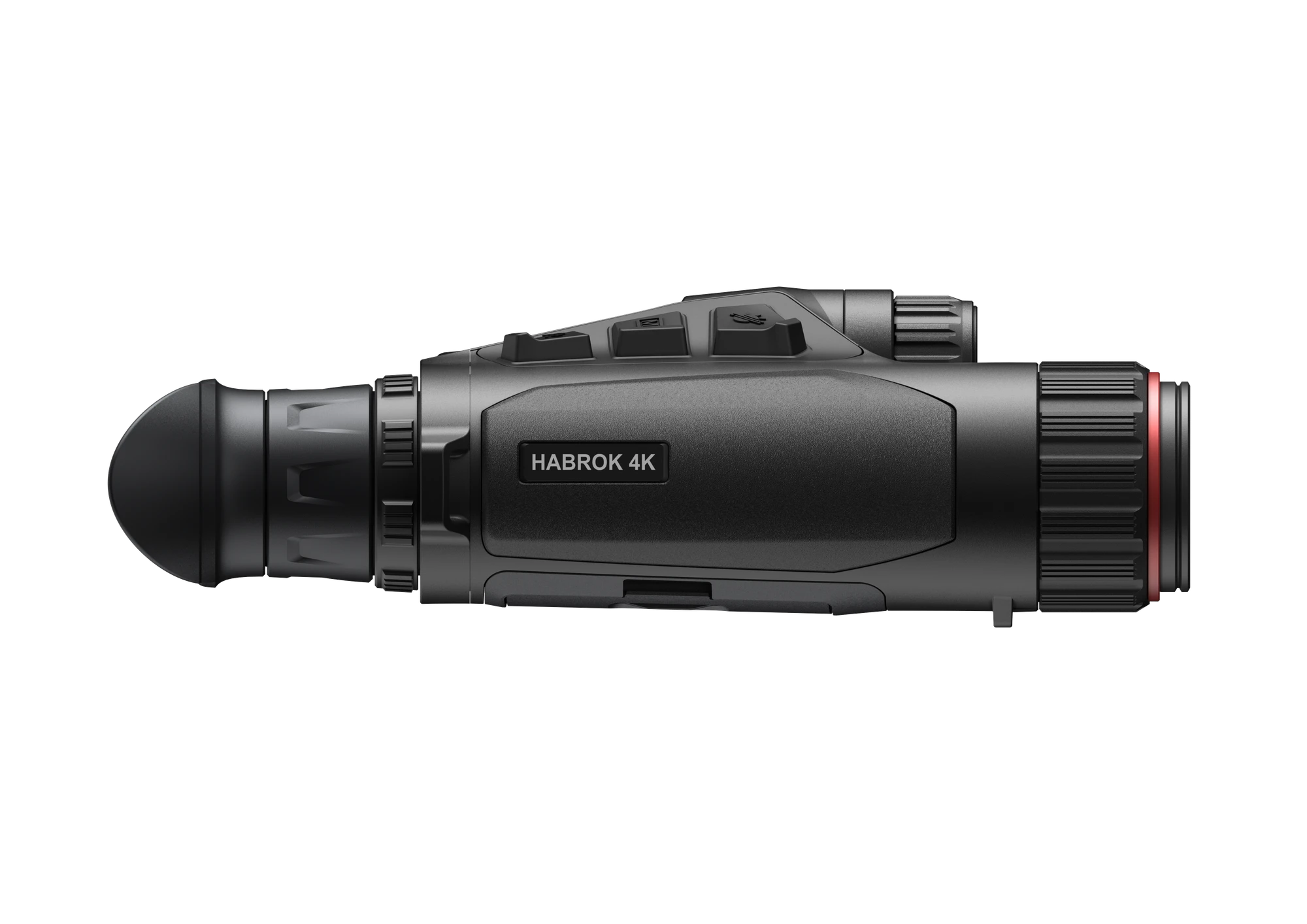

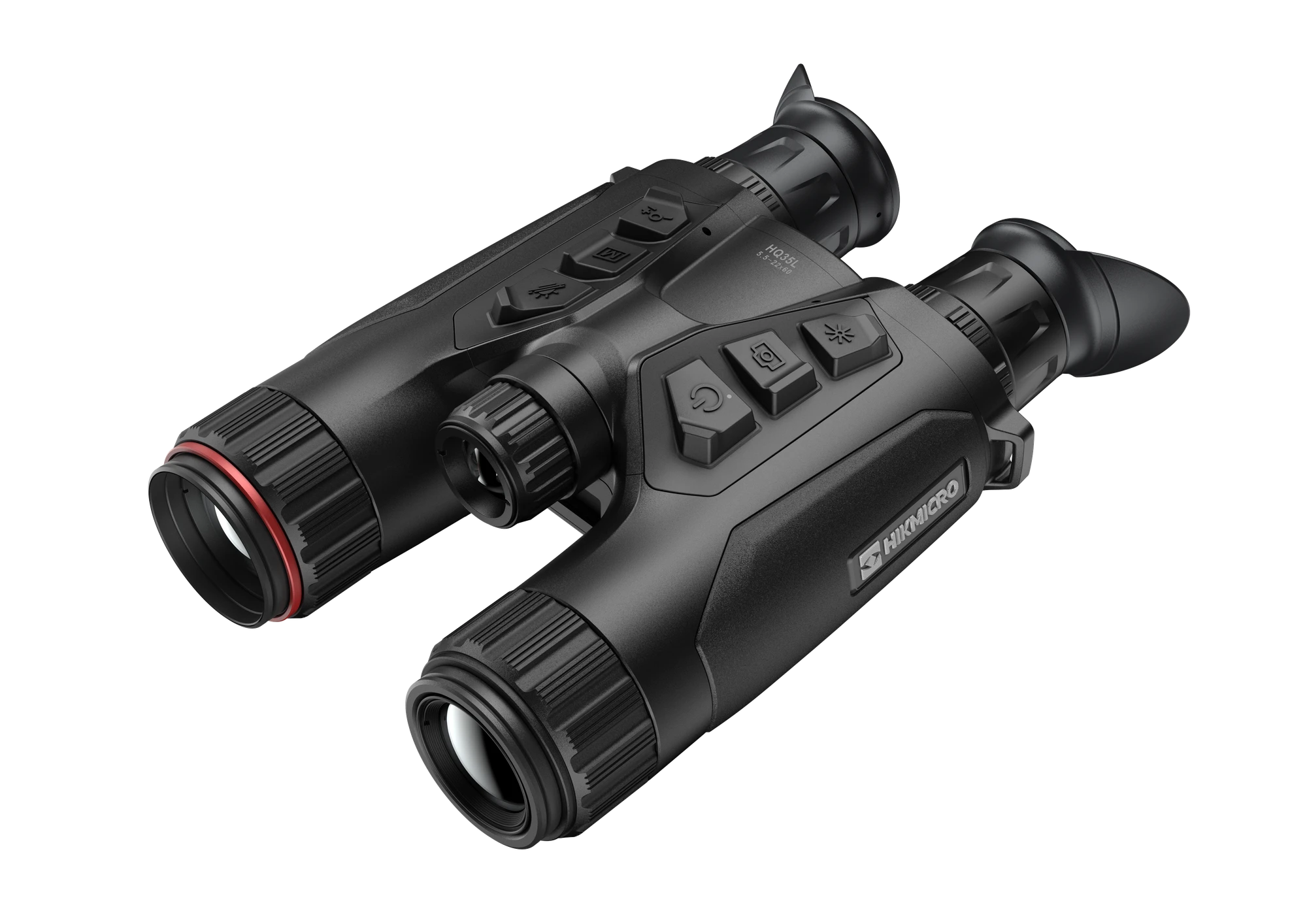

HIKMICRO HABROK HQ35L 35mm 640x512 12mic <20mK NV 850nm Binoculars with LRF

Hunting & Shooting > Night Vis & Thermal > Bino/Monocular

HABROK HQ35L 35mm 640x512 LRF Bino

HIKMICRO HABROK HQ35L 35mm 640x512 12mic <20mK NV 850nm Binoculars with LRF

$6,499.00

Product Details

Description

Enhanced Resolution The Habrok Pro & 4K models combine thermal and digital optical channels, enhancing outdoor experiences. Compact like traditional binoculars but packed with advanced tech. Detect in thermal, view in optical, and record to built-in memory.

Specifications

HIKMICRO HABROK HQ35L multi-spectrum binocular is equipped with a 640 × 512 @12 um thermal detector and a 2560 × 1440 optical detector.

With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions.

Key Features

640 × 512 Resolution @12 μm thermal detector
High sensitivity

Thermal Module NETD < 20 mK (@25° C, F# = 1.0)

35 mm, F1.0 lens with thermal detection range up to 1800 m
2560 × 1440 high Resolution CMOS detector
1920 × 1080 Resolution 0.49-inch OLED display
Built-in 850 nm IR Illuminator and

Laser Rangefinder of 1000 m measuring distance

6 h+ continuous operation
780 g lightweight, compact and ergonomic design Specification

Laser Rangefinder

Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ± 1 m
Min. Measuring Range: 10 m Infrared Illuminator
Emitter: LED
IR Wavelength: 850 nm
Beam Angle: Adjustable 7.6 to 11.5°

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 640 × 512
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25° C), F# = 1.0
Lens (Focal Length): 35 mm, F1.0
Focus Mode: Focus Ring
Detection Range: 1800 m
Min. Focusing Distance: 3.5 m
Magnification: 3.0× to 24.0× (8× )
Field Of View (H×V), Degrees/m @100m: 12.5° × 10.1° / 22.0 m × 17.6 m Optical Module
Image Sensor: 1/1.8'' Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Focal Length: 31 mm, F1.2
Min. Working Distance: 3 m
Min. Illumination: 0.001 lux @ (F1.0, AGC On)
Focus Mode: Focus Ring
Magnification: 2.9× to 23.2× (8× )
Field Of View (H×V), Degrees/m @100m: 13.9° × 7.8° /24.4 m × 13.6 m
Smart IR: Yes
Viewing Range At Night: 400 m

Image Display

Display: 0.49 inch, OLED, 1920 × 1080
Palettes: Thermal: Black Hot, White Hot, Red Hot, Fusion; Optical: Day, Night, Auto
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 8 mm
Eye Relief: 15 mm
Diopter (Range): -5 D to +3 D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Zoom Pro: Yes

System

Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (64 GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Digital Magnetic Compass: Yes
GPS: Yes
Local Album: Yes

Power Supply

Battery Type: Replaceable and Rechargeable Li-ion Battery
Battery Operating Time: ≥6 h (25° C, with hotspot off)
Type-C

Power Supply: 5 V DC, 2 A

Supports External

General

Protection Level: IP67
Dimension: 138.2 mm × 68.4 mm × 212.4 mm (5.4" × 2.7" × 8.4")
Weight: 780 g without batteries
Working Temperature: -30° C to +55° C
Interpupillary Adjustment Range: 60 mm to 70 mm
Mounting Adapter: 1/4“-20-UNC

Product Code:HQ35L

Barcode:6974004643997

Brand:Huntsman Optics

Type:Bino/Monocular

Availability:In Stock
