$185.77

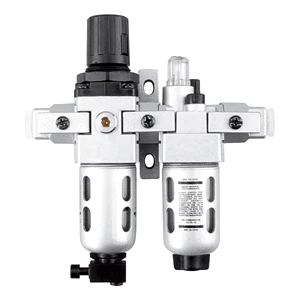

Complete With Gauge GZ60406 - GROZ Air Filter-Regulator-Lubricator Combination Unit Space saving 2 pc Modular Filter-Regulator Combination & Lubricator is by far the most popular Air Preparation unit. The Filter-Regular Combination & Lubricator are attached in series using spacers & piping adapters, which makes the 2 components easily removable / mountable without disturbing the pipe line. Come complete with a wall mounting bracket. Air Filter is used to separate dust, dirt, moisture & other contaminants from compressed air. Filter has a Die Cast Aluminium body, polycarbonate bowl with a steel bowl guard & a high performance Sintered Bronze Filtering element. Filter is designed with a Separator & shield for efficient moisture separation. Regulator maintains a steady outlet pressure, unaffected by variations/ fluctuations in the inlet pressure. Regulators have a Non Raising “Press to Lock” adjusting knob for locking at any set pressure. Regulators work on a Diaphragm operated, relieving type mechanism with pressure compensated by balanced poppet. Air Lubricators are used to feed lubricants to pneumatic equipments. These maintain a constant oil-to-air density over a wide range of flow. Lubricators are Fog/Micro Mist type, upto 15m / 50ft pipe runs. Designed for best performance with 32 grade oil. These have a Die Cast Aluminium Head, polycarbonate bowl with a steel bowl guard. The head is fitted with Oil drop indicator, Oil drop controller & Oil filling plug
• Pressure adjustment range of 7 - 145 PSI (0.5 - 10 BAR)
• 40 micron filtering element
• Press Type Manual Drain with Night Time Drain feature which automatically drains off the bowl once the compressed air supply to the filter is switched off. WETTED COMPONENTS: Aluminium, Bronze, Brass, Steel, Acetal, Polycarbonate, Stainless Steel & Nitrile FRCLM-14 INTERMEDIATE COMPLETE WITH 42MM GAUGE Max flow rate: 63 CFM / 1800 LPM Min flow rate: 1.41 CFM / 40 LPM Bayonet type steel bowl guard, Regulator with in-built Venturi for Flow Compensation CONFORMS TO ISO 6953-1, 5782-1 & 6301-1 WARNING: Polycarbonate bowls may get damaged and possibly fail if exposed to synthetic oils, thinner, solvents, trichloroethylene, kerosene or other aromatic hydrocarbons.
