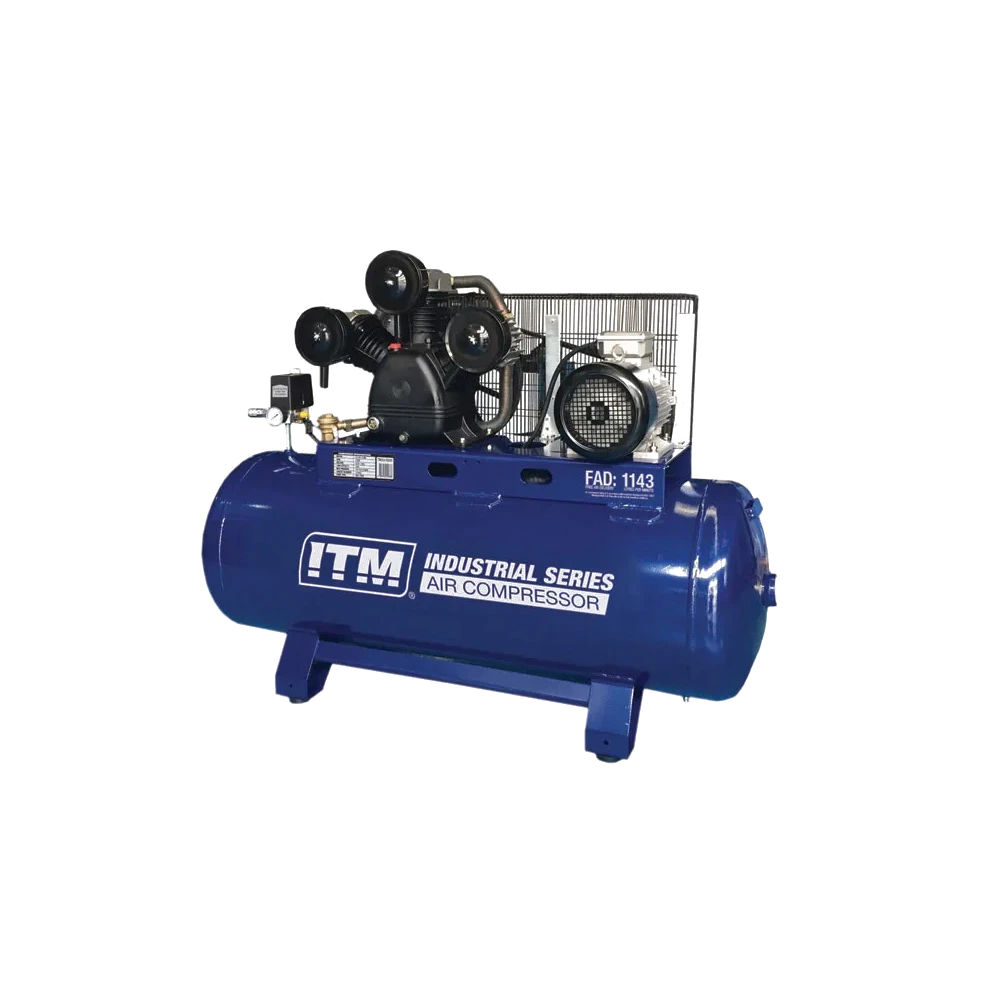

Fad 1143 L/Min TM353-10270 | ITM Air Compressor Stationary 10HP | 270L | 3 Phase FEATURES

• Triple cast iron cylinder oil lubricated pump with aluminium head.

• Powerful high efficiency induction motor.

• Soft start valve for electric motor protection.

• Thermal overload protection with manual reset.

• Full brass non-return valve.

• Certified safety valve.

• Reliable Condor pressure switch.

• Includes twin outlet one-touch “Nitto style” connectors. SPECIFICATIONS

• Motor: 10HP - Three Phase 415V

• Tank Capacity: 270 L

• Max Pressure: 147 PSI (10 Bar)

• Pump Displacement: 1269 L/min (44.8 CFM)

• Free Air Delivery: 1143 L/min (40.4 CFM)

• Pump RPM: 950

• Package Dimensions: 161cm L x 62cm W x 131cm H

• Compressor Dimensions: 155cm L x 54cm W x 112cm H
