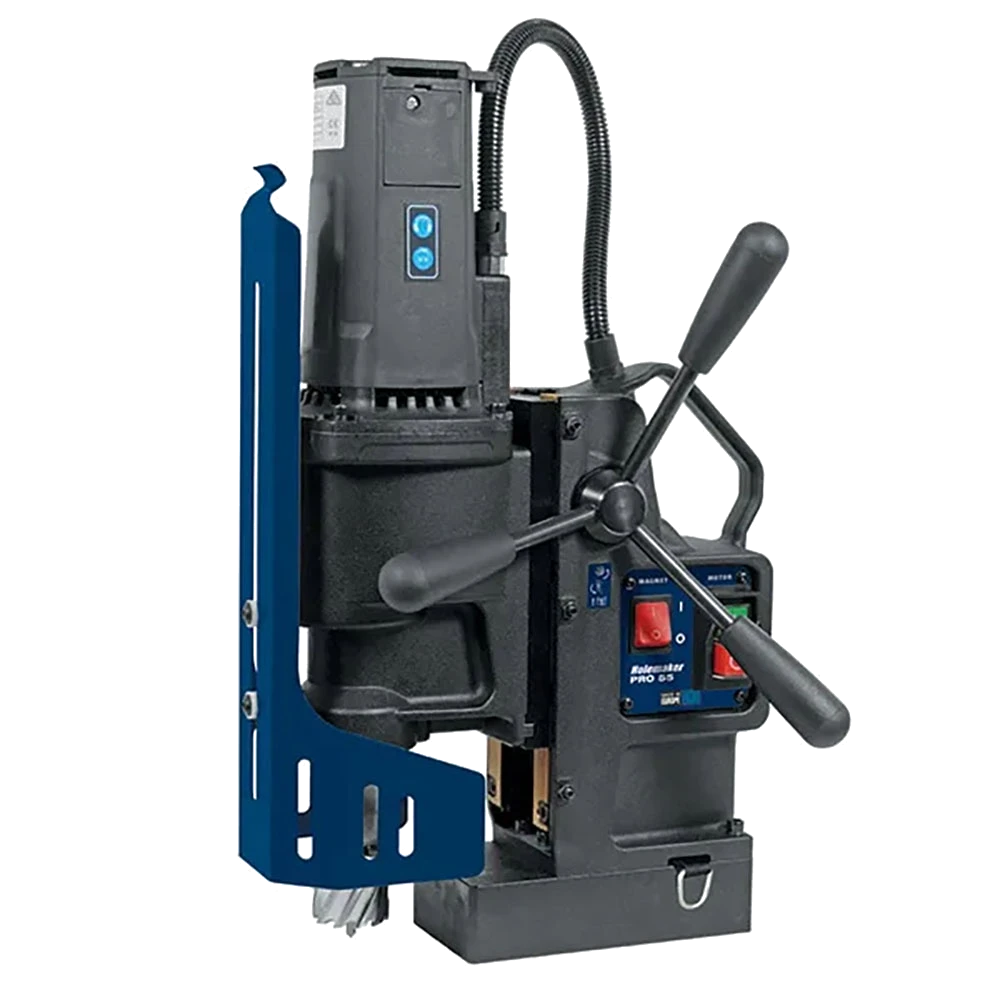

Capacity 55mm Dia. x 75mm DOC HMPRO55 | Holemaker PRO55 Magnetic Base Drill FEATURES New generation machines with the latest technology and design.

• New Rigid Frame Design

• Provides increased life of cutting tools.

• New Extra Large 165mm Stroke

• Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.

• Magnetic Field Shape Control (MFSC)

• Provides maximum holding power on thin materials.

• Lightweight & Powerful

• The new generation Holemaker machines are lighter and more powerful than other brands on the market. Features:

• European made machine

• Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck

• Industrial 2-speed gearbox

• Through spindle coolant system, with an external side mounted gravity feed coolant tank

• The feed handles can be placed on either the left or right hand side, for increased versatility

• Smart magnet technology to ensure sufficient magnetic adhesion

• Integrated cutter guard for increased user safety

• Supplied in a blow mould plastic carry case

• Grub screw arbor system, which fastens positively onto Holemaker cutters

• 13mm drill chuck SA70102 available separately SPECIFICATIONS

• Capacity (Diameter): 55mm

• Capacity (Depth): 75mm

• Capacity (Twist Drills): #2 Morse Taper 18mm

• Motor Power: 1100 Watt

• Input Power: 1200 Watt Single Phase 240V

• Speed: 2 Speed 200 / 400rpm

• Weight: 15.5kg

• Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate

• Stroke: 165mm

• Height (Min. / Max.): 409 / 574mm
