ITM Concrete Lifting Clutch Panel Lifter 2.5T Features

• Specifically designed for lifting precast concrete elements with an embedded pin

• Easily engages under load, ensuring proper connection

• Simple clutch release when lifting completed

• Available in working load limits ranging from 1.3t to 20t

• Tested and certified to AS 3850.1 Specifications

• W.L.L. (t): 2.5

• B.L. (t): 10

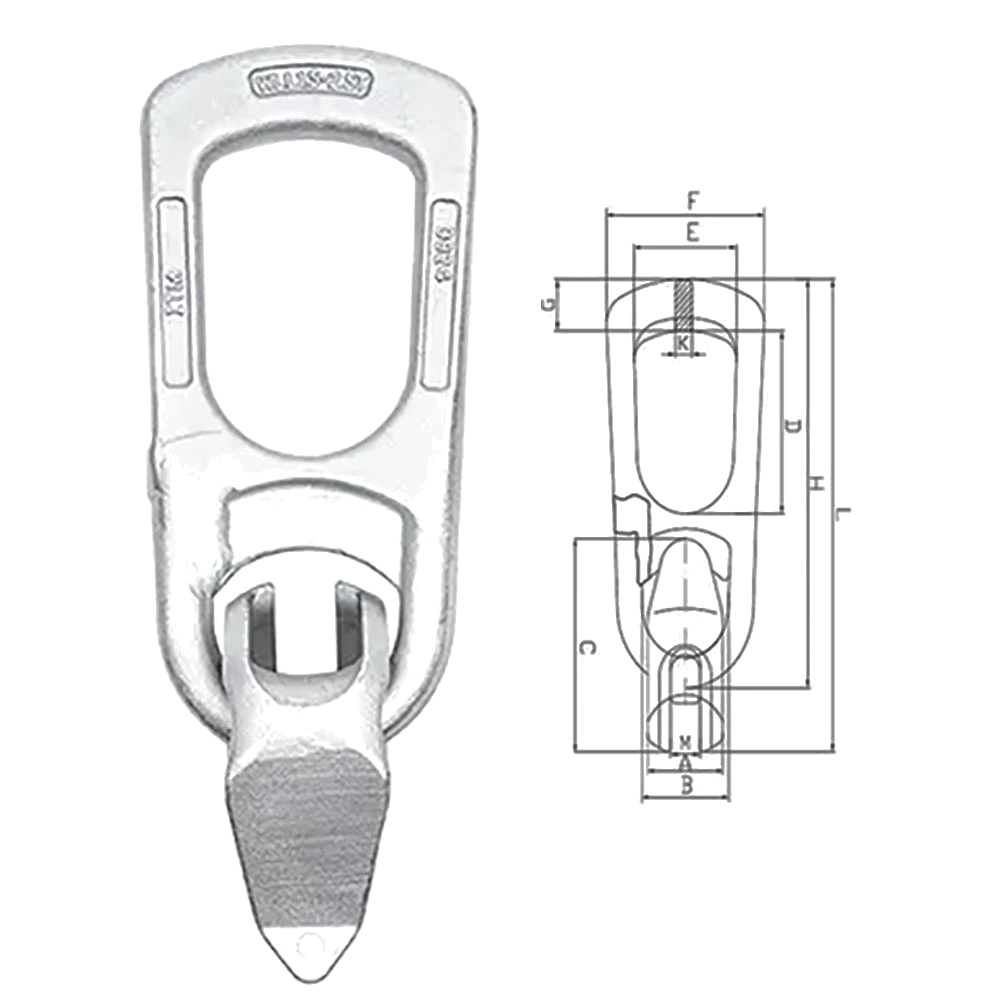

• Dimension A (mm): 41

• Dimension B (mm): 49

• Dimension C (mm): 102

• Dimension D (mm): 85

• Dimension E (mm): 57

• Dimension F (mm): 88

• Dimension H (mm): 188

• Dimension M (mm): 16

• Dimension L (mm): 227

• Dimension G (mm): 27

• Dimension K (mm): 14

• Weight (kg): 1.3
