$3.72

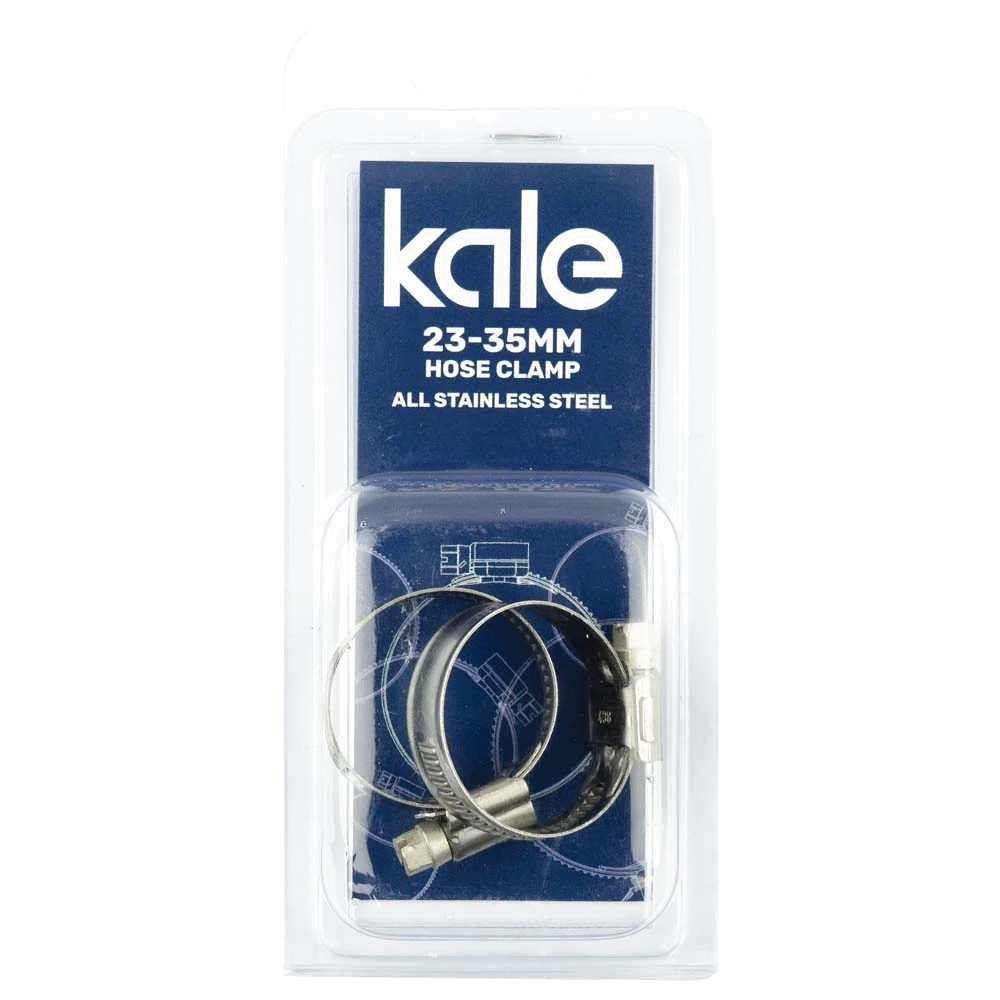

WD - Worm Drive Clamp Blister Pack WD122335W3R | Kale WD12 23-35mm W3-R (2pk) WD12 | 23-35mm Capacity | W3 Features:
• Light product, easy assembly and space saving with compact housing and screw design.
• Stronger and durable with the mechanically locked single piece design of housing.
• Burr-free and convex band edges.
• 100% traceability on the product.
• High clamping force with low tightening torque.
• Higher tightening torque and clamping force with 12mm band width. Technical Spec:
• Band Width - 12mm
• Capacity (min - max) - Ø 23-35mm
• Tightening Torque (max) - 5.0Nm (1)
• Screw Housing Length - 24mm
• Grade W3 - Stainless Screw, Band & Housing (2)
• Corrosion Resistance (min.Hour) IS0 9227 - 72
• Screw Head - FL | 7mm Hex (1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm (2) Screw - 1.4016 Stainless DIN EN-10088-3 or equivalent | Housing & Band - 1.4016 Stainless DIN EN-10088-2 or equivalent (3) 10% red rust allowed on the total surface of W3 products, after salt spray test KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
