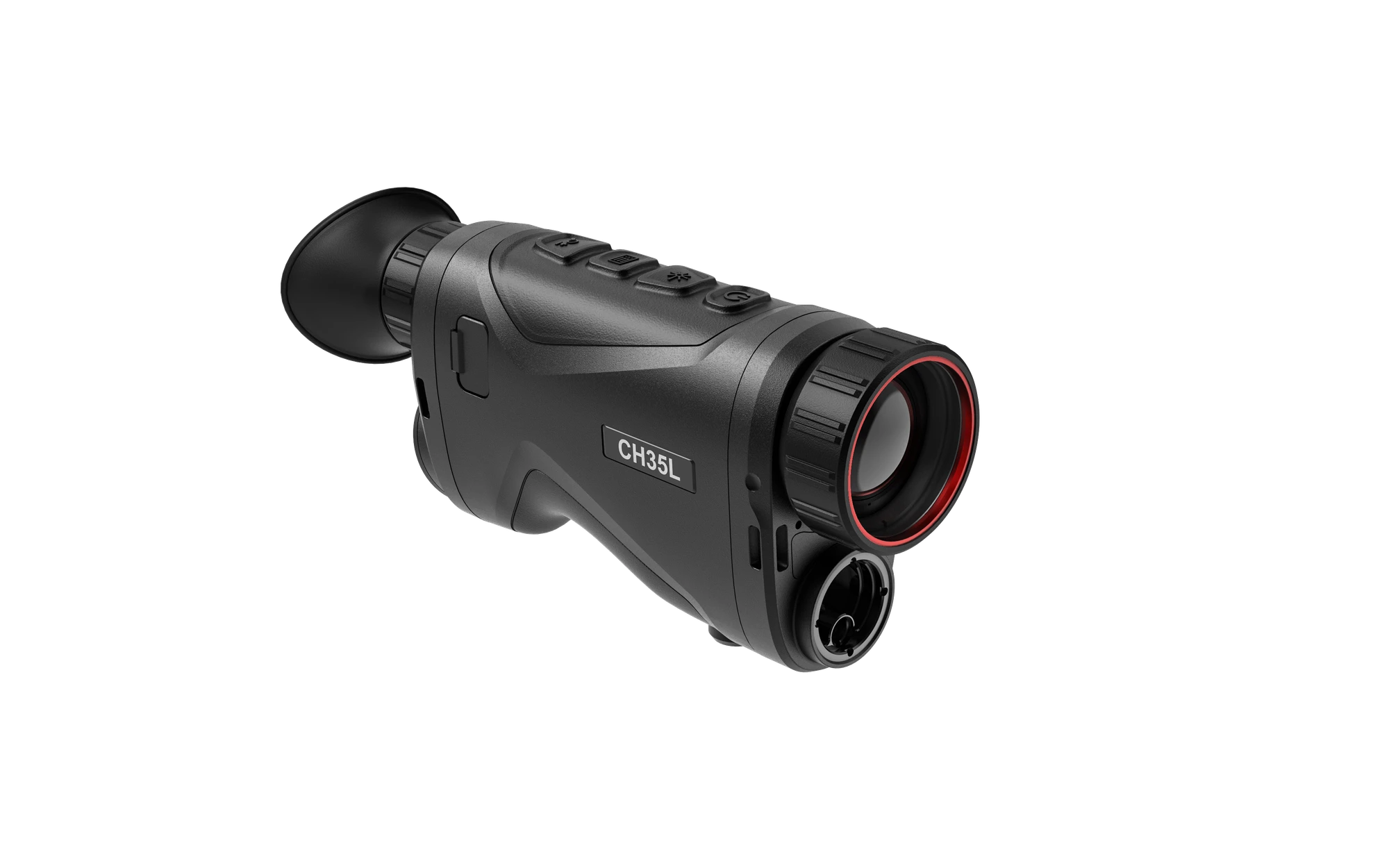

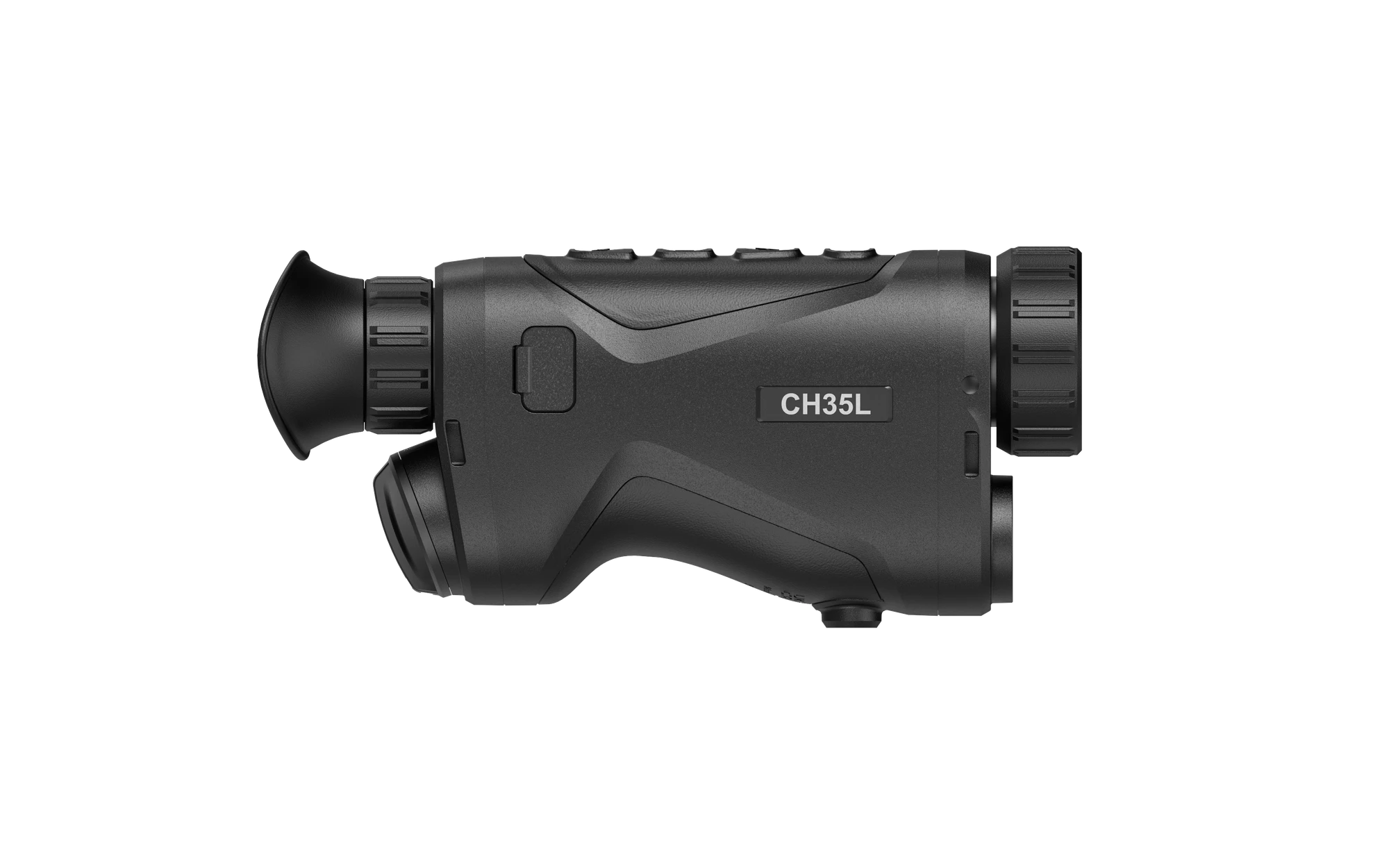

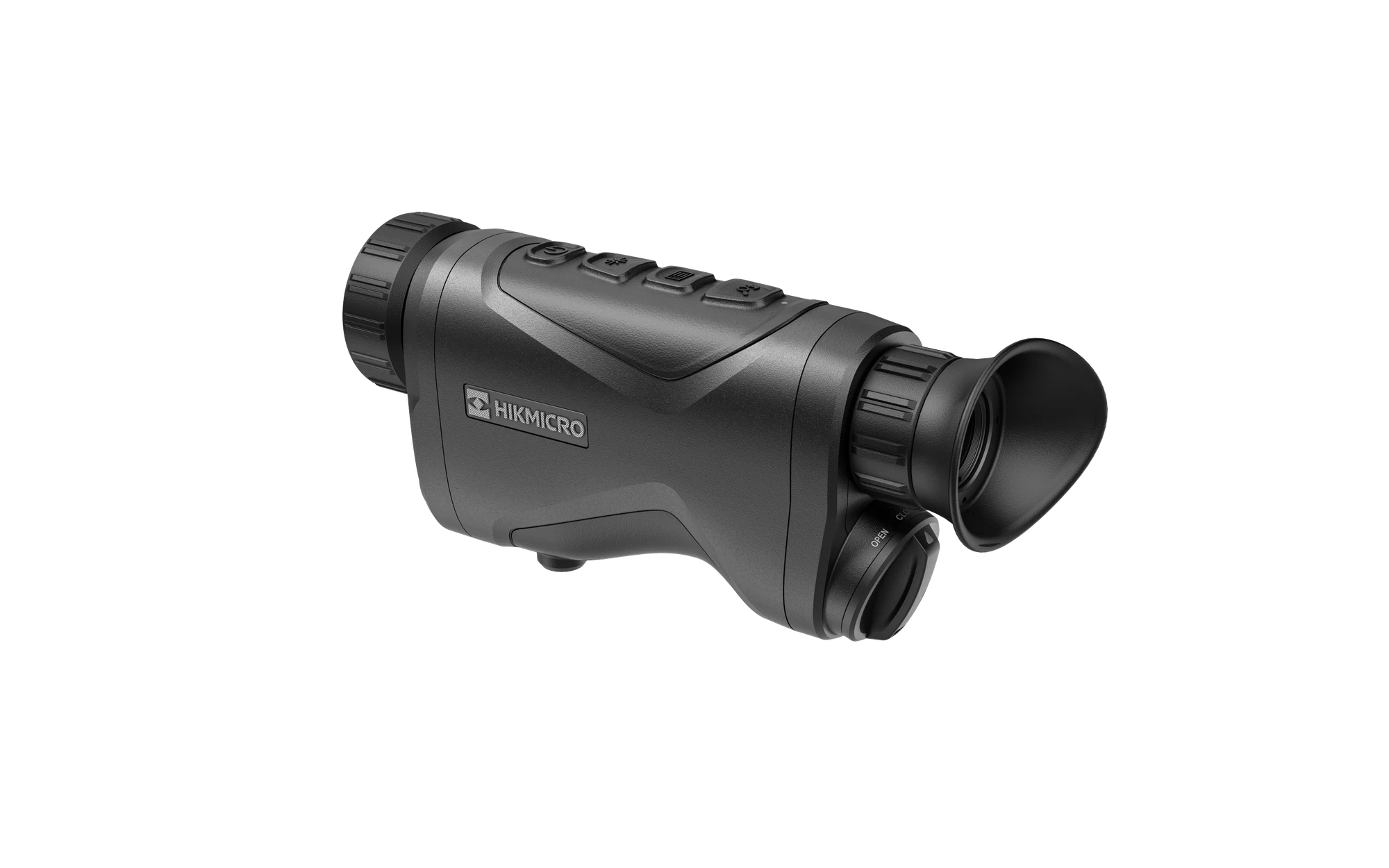

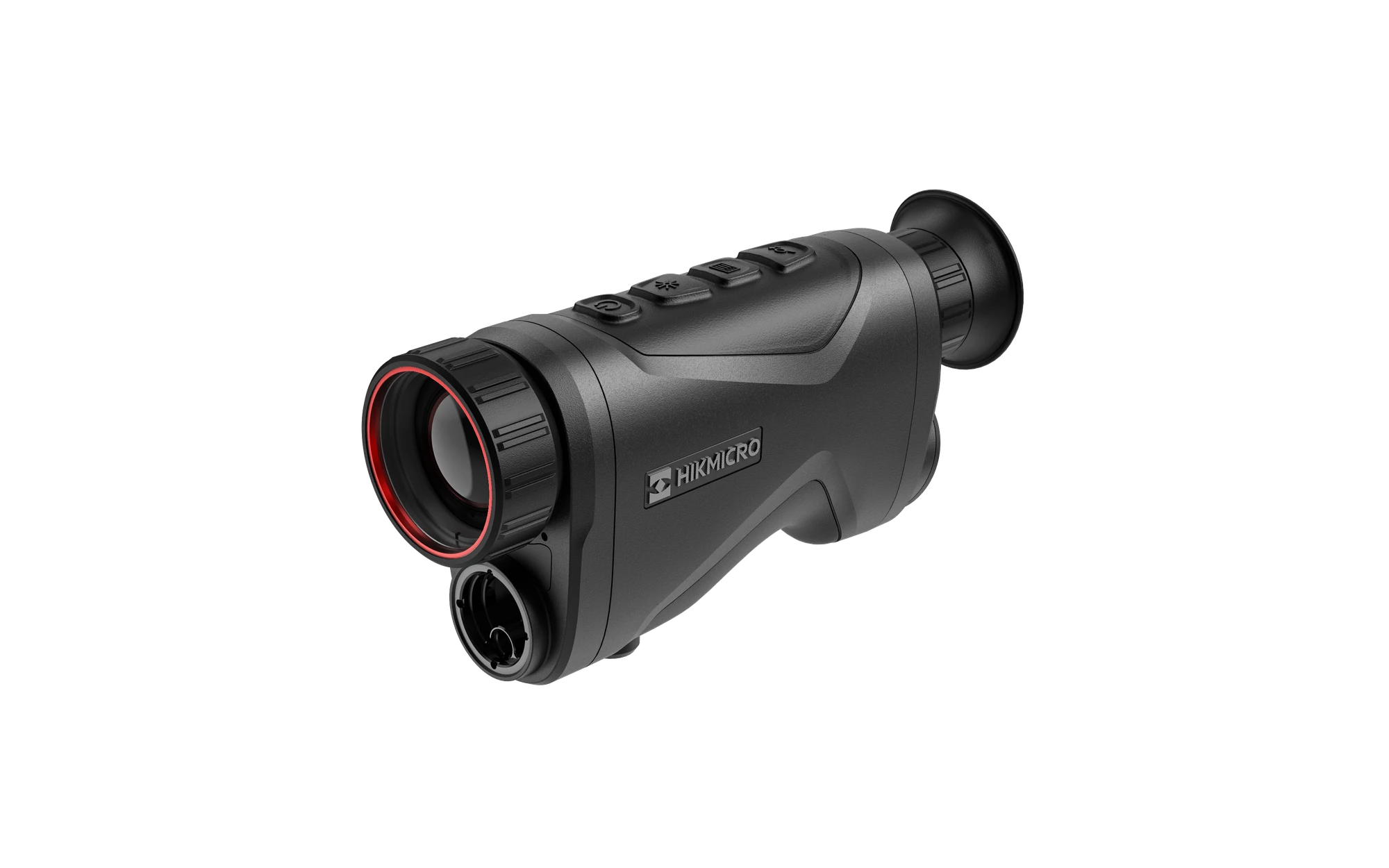

HIKMICRO CONDOR CH35L 35mm 384x288 12mic <20mK Thermal Monocular with LRF

Hunting & Shooting > Night Vis & Thermal > Bino/Monocular

CONDOR CH35L 35mm 384x288 LRF Mono

HIKMICRO CONDOR CH35L 35mm 384x288 12mic <20mK Thermal Monocular with LRF

$3,899.00

Product Details

Description

Remarkable image quality This compact spotter is equipped with a powerful, high-sensitivity NETD<15 mK thermal detector, which captures exceptionally fine detail. The result is a vivid, layered image, which doesn't just make it easy to spot and identify target quarry but also gives a very clear view of the surrounding landscape.

Specifications

HIKMICRO CONDOR CH35L thermal monocular is equipped with a 384 × 288 @ 12 um infrared detector and a 1024 × 768 OLED display.

With less than 20 mK NETD, which represents high thermal sensitivity, it ensures perfect image quality and detail recognition even in the hardest weather conditions.

Key Features

High sensitivity

Thermal Module NETD < 20 mK (@25°C, F# = 1.0)

384 × 288 Resolution with 12 μm detector
1024 × 768 Resolution 0.39-inch OLED display
Advanced image processing technology
Image Pro for enhancing detail recognition
Zoom Pro for digital zooming without loss of picture quality
Replaceable and rechargeable Li-ion battery
Up to 4.5 hours of continuous operation
400 g lightweight, with a compact and ergonomic design Specification

Laser Rangefinder

Safety Class for Laser: Class 1
Wavelength: 905 nm
Max. Measuring Range: 1000 m
Measurement Accuracy: ± 1 m
Min. Measuring Range: 10 m

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length): 35 mm, f1.0
Focus Mode: Focus Ring
Detection Range: 1800 m
Min. Focusing Distance: 3.5 m
Magnification: 3.5× to 28.0× (8×)
Field of View(H × V), Degrees/ m @100 m: 7.5° × 5.6°/13.1 m × 9.7 m @ 100 m

Image Display

Display: 1024 × 768, 0.39 inch, OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 4 mm
Eye Relief: 15 mm
Diopter (Range): -5 D to +3 D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes
Image Pro: Yes
Zoom Pro: Yes

System

Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Yes
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes

Power Supply

Battery Type: Replaceable and Rechargeable Li-ion Battery
Battery Operating Time: 4.5-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C

Power Supply: 5 VDC, 2 A

Supports External

General

Protection Level: IP67
Dimension: 184.9 mm × 53 mm × 87.8 mm (7.28" × 2.09" × 3.46")
Weight: 400 g without battery
Working Temperature: -30°C to +55°C

Product Code:CH35L

Barcode:6974004643874

Brand:Huntsman Optics

Type:Bino/Monocular

Availability:In Stock
