HIKMICRO LYNX S LC06S 6mm 160x120 17mic <35mK Thermal Monocular

Hunting & Shooting > Night Vis & Thermal > Bino/Monocular

LYNX S LC06S 6mm 160x120 Mono

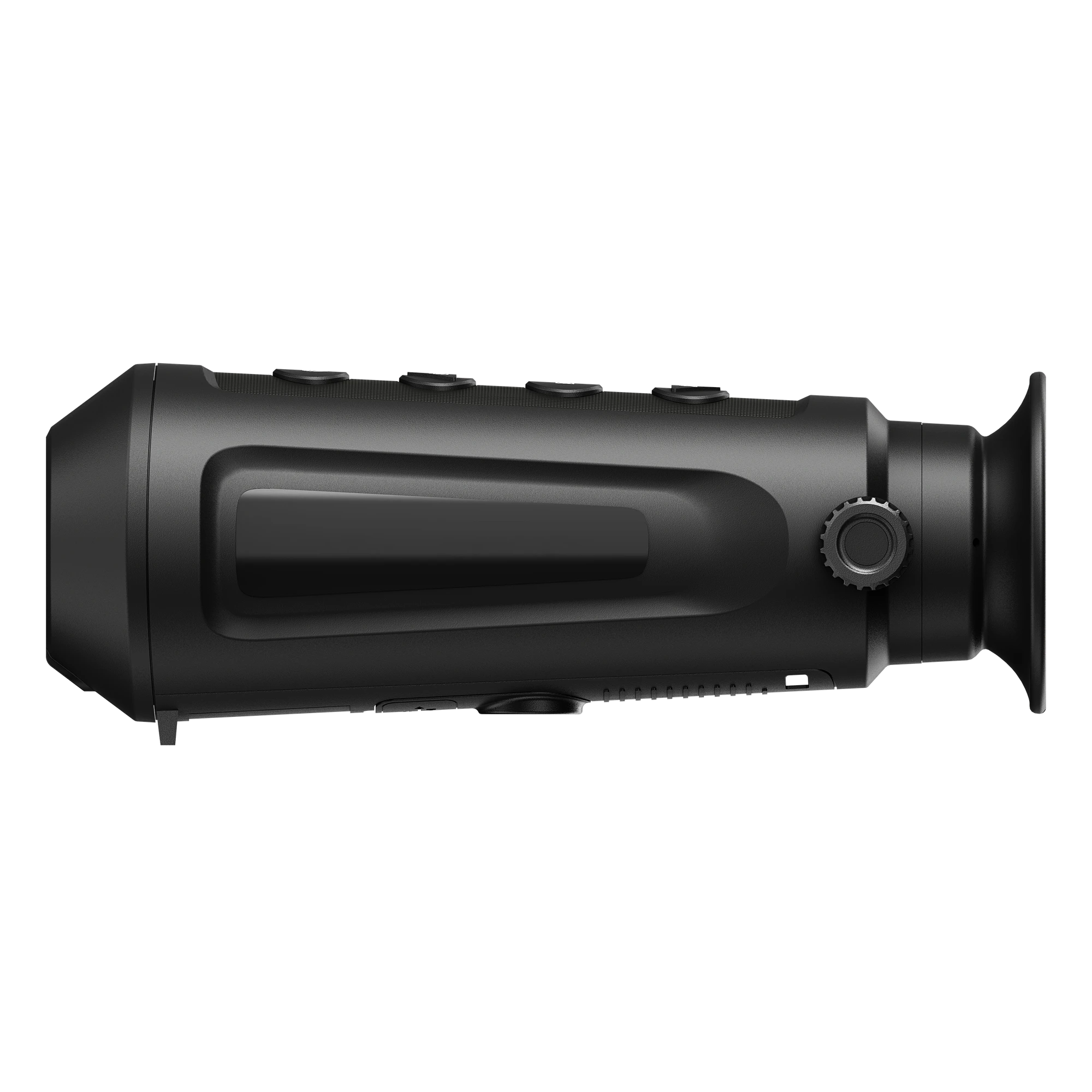

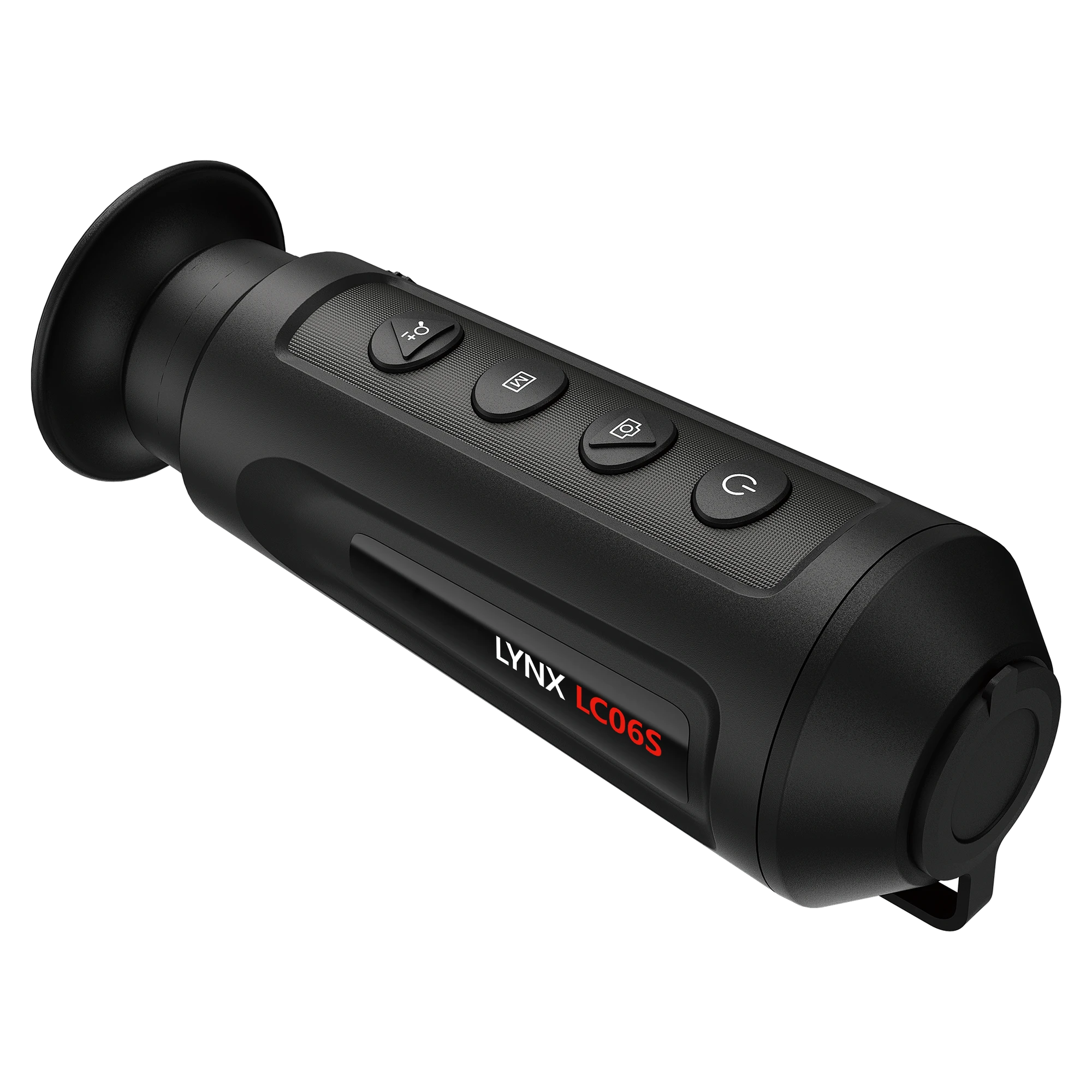

HIKMICRO LYNX S LC06S 6mm 160x120 17mic <35mK Thermal Monocular

$699.99

Product Details

Description

Lightweight & Compact Compact and light with a very comfortable and robust feel to it, the LYNX Monocular has the ultimate thermal performance housed in a small package. With advanced engineering, the refresh rate is smooth and fast – eliminating the need for recalibration as you scan your hunting zone.

Specifications

HIKMICRO LYNX S LC06S thermal monocular is equipped with a 160 × 120 infrared detector and a 800 × 600 OLED display.

It supports functions of observation, distance measurement, hotspot, and so on.

The high-sensitivity built-in thermal detector provides you with clear view even in total darkness.

The monocular is mainly applied to scenarios such as hunting, hiking, searching and rescuing, etc.

Key Features

High sensitivity

Thermal Module with 160 × 120 Resolution

NETD < 35 mK (@25°C, F# = 1.0)
Leading thermal image processing technology: Adaptive AGC, DDE, 3D DNR
800 × 600 Resolution 0.32-inch OLED display
Built-in rechargeable lithium battery
Up to 10 hours continuous operation
Support hotspot
Type-C Interface Specification

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 160 × 120
Frame Rate: 50 Hz
Pixel Interval: 17 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 35 mK (@25°C, F# = 1.1)
Lens (Focal Length): 6.2 mm, F1.1
Detection Range: 250 m
Focus Mode: Focus Free
Min. Focusing: Distance 1 m
Magnification: 1.0× to 4.0× (4×)
Field of View(H × V), Degrees / m @100 m: 24.7° × 18.7° / 43.8 m × 32.9 m

Image Display

Display: 800 × 600, 0.32-inch, OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 20 mm
Eye Relief: 6 mm
Diopter (Range): -5D to +4D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes

System

Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Built-in memory module (8 GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes

Power Supply

Battery Type: Rechargeable Lithium Battery
Battery Operating: Time 10 hours continuous running with CVBS and hotspot off (@25°C), 8.5 hours continuous running with CVBS and hotspot on (@25°C)
Type-C

Power Supply: DC 5 V/2 A

Supports External

General

Protection Level: IP67
Dimension: 158.4 mm × 60.4 mm × 57 mm (6.24" × 2.38" × 2.24")
Working Temperature: -20°C to 55°C (-4°F to 131°F)
Weight: 250 g (0.55 lbs)

Product Code:LC06S

Barcode:6974004643225

Brand:Huntsman Optics

Type:Bino/Monocular

Availability:In Stock
