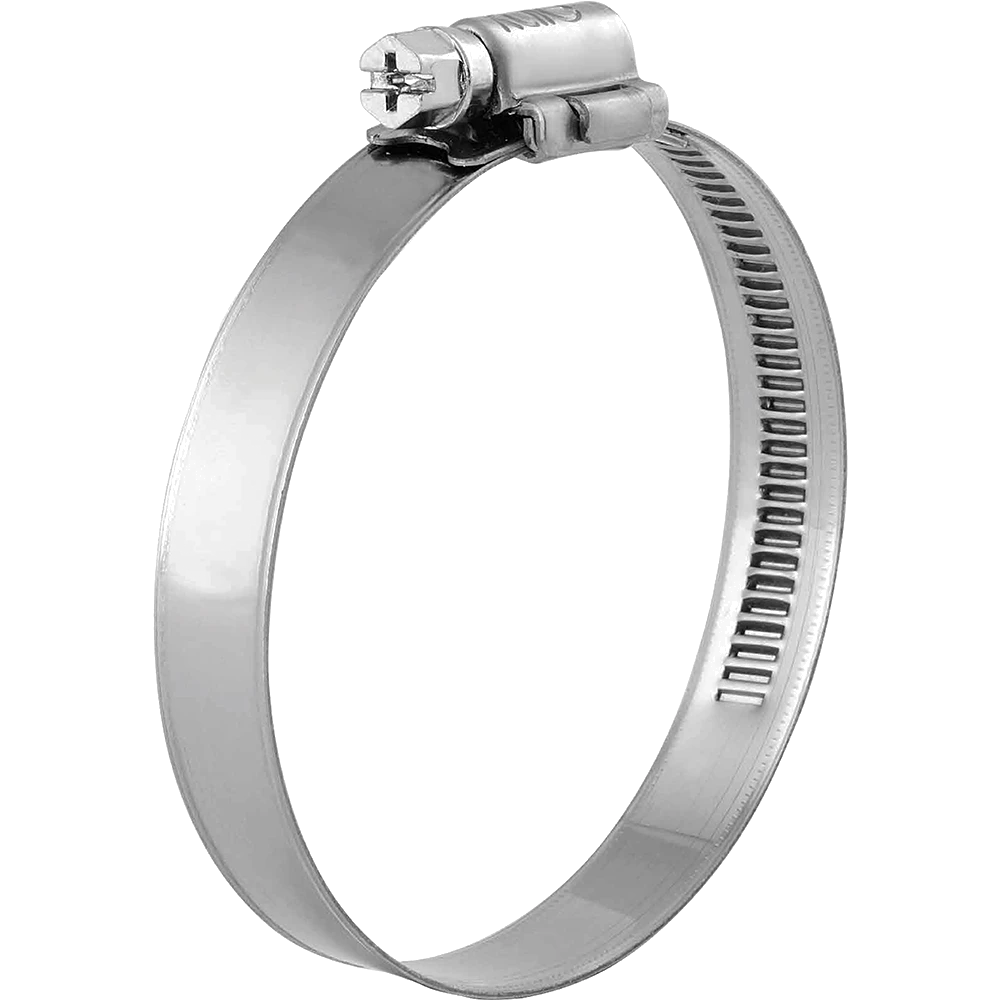

WD - Worm Drive Clamps WD124060W1 | Kale WD12 40-60mm W1 (10pc) Worm Drive 12 | 40-60mm Capacity | W1 Features:

• Light product, easy assembly and space saving with compact housing and screw design.

• Stronger and durable with the mechanically locked single piece design of housing.

• Burr-free and convex band edges.

• 100% traceability on the product.

• High clamping force with low tightening torque.

• Higher tightening torque and clamping force with 12mm band width. Technical Spec:

• Band Width - 12mm

• Capacity (min - max) - Ø 40-60mm

• Tightening Torque (max) - 5.0Nm (1)

• Screw Housing Length - 24mm

• Grade W1 - Screw(Zinc Plated), Band(Zinc Aluminium Plated) & Housing(Zinc Plated)

• Corrosion Resistance (min.Hour) IS0 9227 - 72

• Screw Head - FL | 7mm Hex (1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm (2) Screw & Housing (Zinc Plated) | Band – Mild Steel (Zinc Plated) KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
