Description
Traditional tube with powerful performance.
The Stellar 3.0 Thermal Scopes feature high-resolution detectors (up to 1280 × 1024),
2560 × 2560 OLED displays, and NETD<15 mK sensitivity. With up to 3100 m detection
range, built-in laser rangefinder, ballistic calculation, and 10-hour battery life, they offer
precision and reliability for field and forest hunting.
Specifications

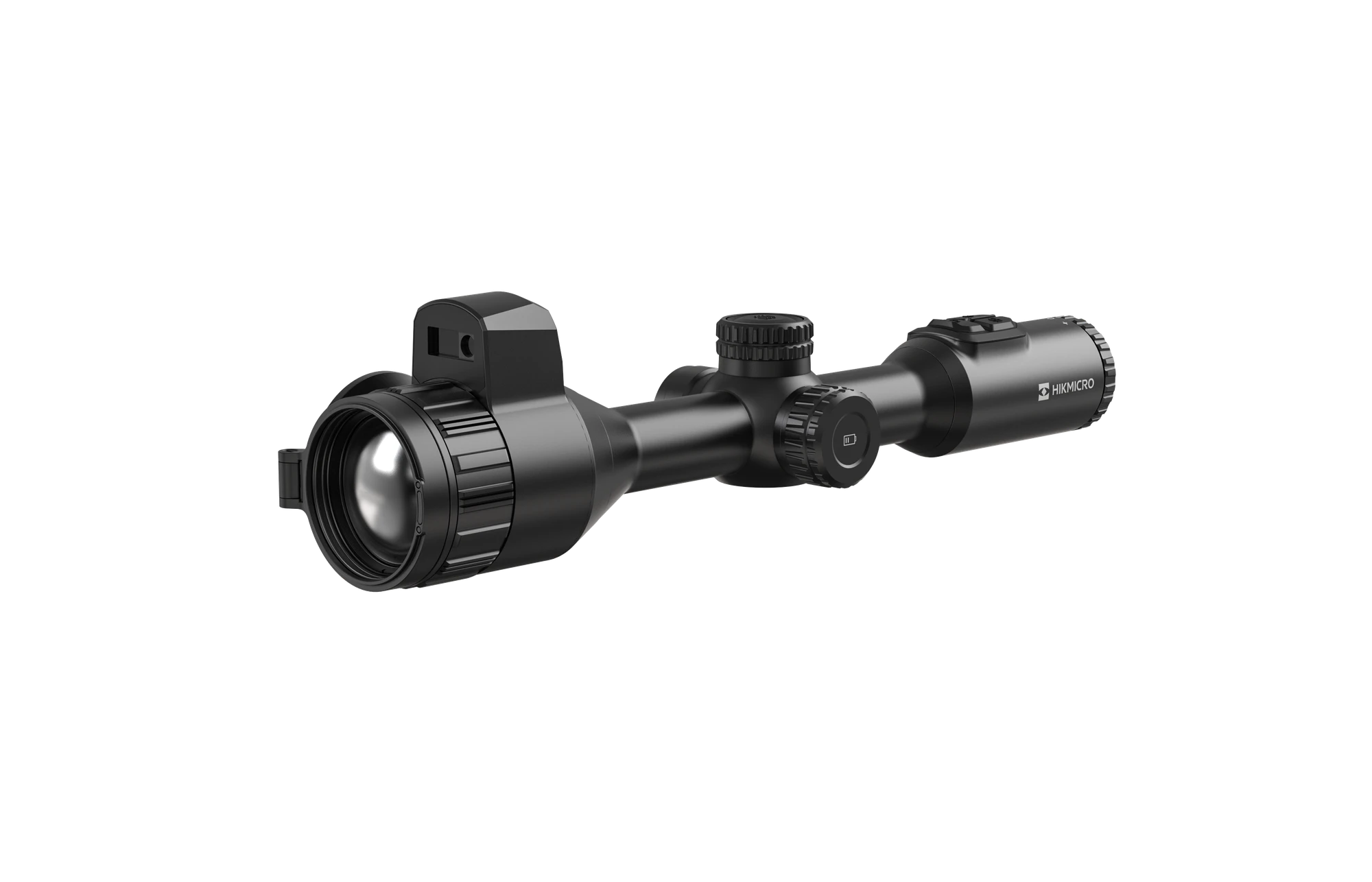

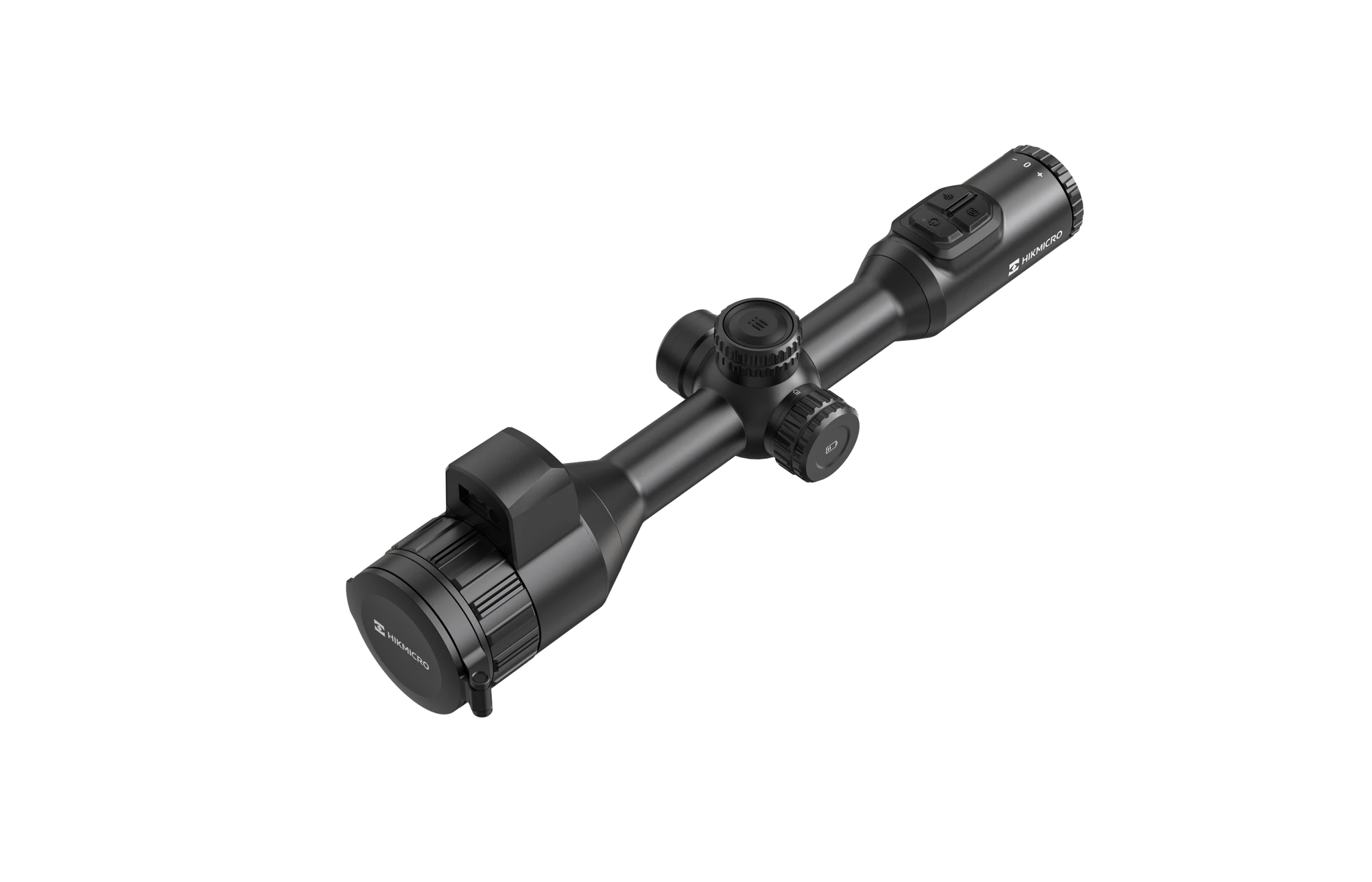

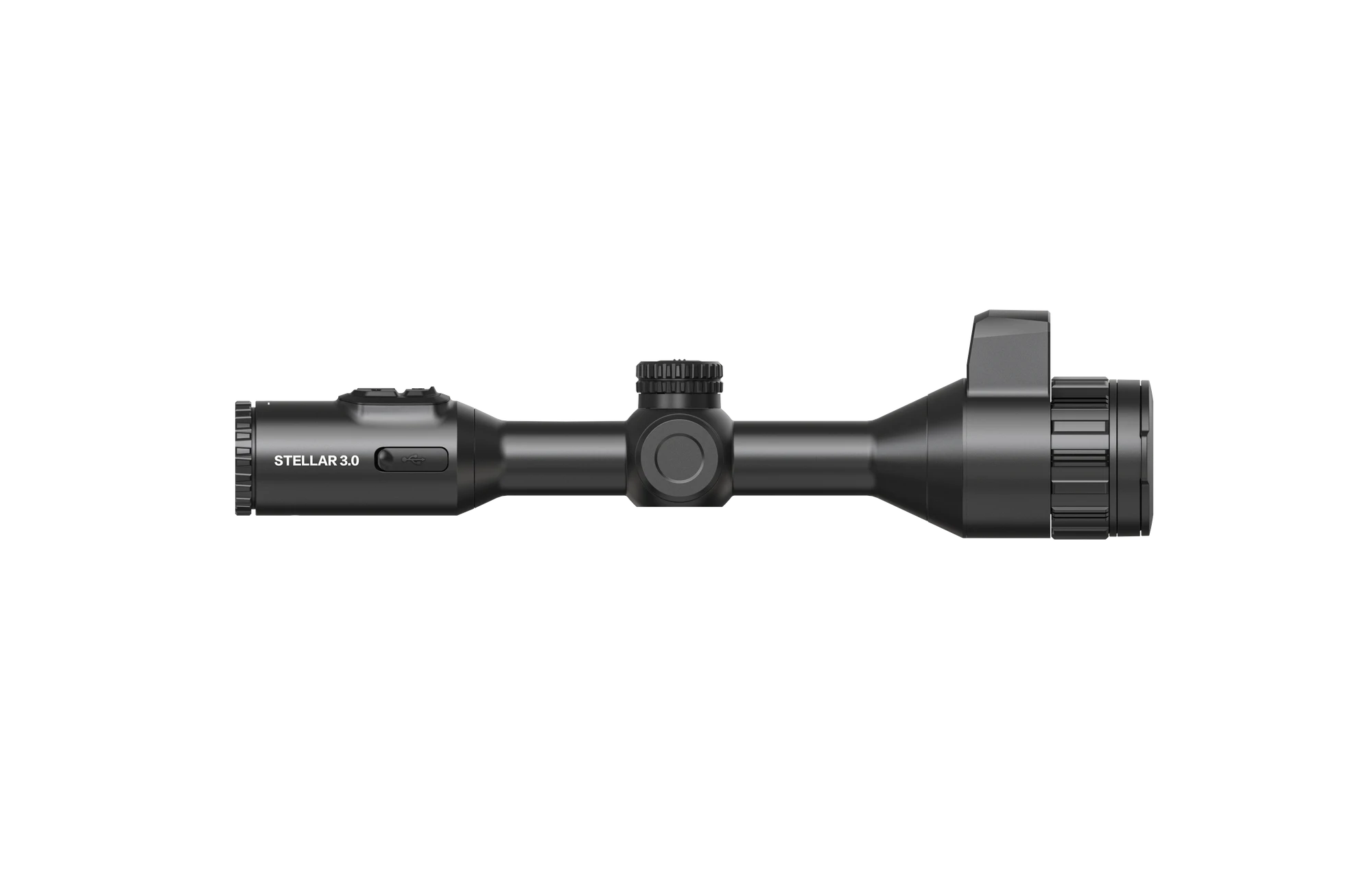

HIKMICRO STELLAR SH50L 3.0 Thermal Scope is equipped with a 384×288 @12μm thermal detector, with much higher sensitivity (NETD＜15mK) and the latest image processing algorithm (Image Pro 2.0) and shutterless.
Key Features
- 384 x 288 Resolution @12 μm thermal detector
- High sensitivity
Thermal Module NETD<15 mK (@25°C, F# = 1.0)
- 50 mm, F1.0 lens with detection range up to 2600 m
- 2560 × 2560 Resolution 1.03-inch OLED display
- HIKMICRO Shutterless Image
System (HSIS)
laser rangefinder up to 1000 m, with ballistic calculation
- Rechargeable internal batteries and external battery, 9h continuous operation
- High shock resistance up to 1000 g/0.4 ms
Specification
Laser Rangefinder
- Safety Class for Laser: Class 1
- Wavelength: 905 nm
- Max. Measuring Range :1000 m
- Measurement Accuracy: ±1 m
- Min. Measuring Range: 10 m
Thermal Module
- Image Sensor: VOx Uncooled Focal Plane Arrays
- Max. Resolution: 384 × 288
- Frame Rate: 50 Hz
- Pixel Interval: 12 μm
- Response Waveband: 8 μm to 14 μm
- NETD: Less than 15 mK (@25°C, F# = 1.0)
- Lens (Focal Length): 50 mm, F1.0
- Focus Mode: Focus Ring
- Detection Range: 2600 m
- Min. Focusing Distance: 5 m
- Magnification: 6.0× - 24.0×, Support 1× step value of continuous zooming
- Field of View(H×V), Degrees / m @100 m: 5.3° × 4.0°/9.3m x 7.0m
Image Display
- Display: 2560 × 2560, 1.03-inch OLED
- Palettes: Black Hot, White Hot, Red Hot, Fusion, Red Monochrome, Green Monochrome
- Exit Pupil: 6 mm
- Eye Relief: 45 mm
- Diopter (Range): -5D to 3D
- Brightness Adjustment: Yes
- Tone Adjustment: Cold, Warm
- Contrast Adjustment: Yes
- Zoom Pro: Yes
- Image Pro 2.0: Yes
- HSIS (HIKMICRO Shutterless Image
System
- Record Video: On-board Video Recording
- Capture Snapshot: Yes
- Audio Recording: Yes
- Recoil-Activation Recording: Yes
- Standby Mode: Yes
- Storage: Built-in EMMC (64 GB)
- PIP: Yes
- Hotspot: Yes
- Hot Track: Yes
- Distance Measurement: Yes
- Zeroing Profiles: 5
- Max. Recoil: 1000 g/0.4 ms
- Freeze Zeroing: Yes
- Local Album: Yes
Power Supply
- Battery Type Two rechargeable Lithium batteries (internal), one replaceable and rechargeable 18650 battery (external)
- Battery Operating Time 9 hours continuous running (@-20°C, Zoom Pro, LRF on)
- Type-C
General
- Mounting Standard 30 mm
- Protection Level IP67
- Dimension 418.5 mm × 84 mm × 92.4 mm
- Weight 880 g without external battery
- Working Temperature -30°C to 55°C (-22°F to 131°F)
- Center Height 34 mm
Product Code:SH50L 3.0
Barcode:6974004646820
Brand:Huntsman Optics
Type:Scopes
Availability:In Stock
