$732.86

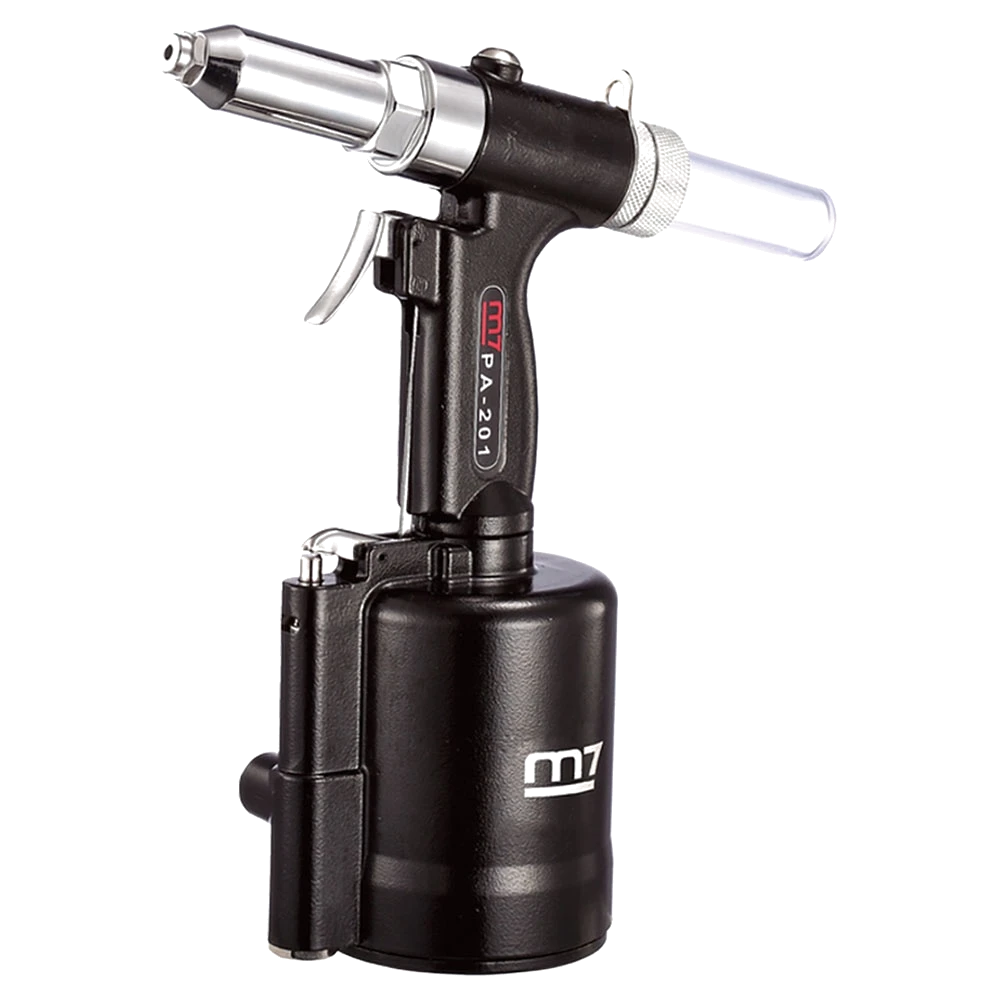

M7 Hydraulic Air Riveter 14mm Stroke FEATURES
• Durable alloy steel chuck jaws are now equipped to improve performance and lifetime.
• Mirror finished cylinder and piston brings less friction and allows the rivets to be released quickly.
• Performs well in all operating directions or hard-to-reach area.
• A powerful, durable, high-speed tool for assembly line and intensive use.
• It is necessary to refer to the specification table of riveters prior to purchase.
• Superb quality pneumatic air riveter. SPECIFICATIONS
• Traction Power: 3534lb.f / 1603kgf
• Stroke Length: 14mm
• Capacity: 2.4-6.4mm
• Air Requirement: 90PSI / 2.32CFM
• Air Inlet: 1/4"
• Net Weight: 1.8kg
• Sound Pressure: 79.7 dBA
• Vibration Level: 0.5m/s²
• Aluminium Rivet & Aluminium Mandrel: 1/4" (6.4mm)
• Aluminium Rivet & Steel Mandrel: 1/4" (6.4mm)
• Steel Rivet & Steel Mandrel: 1/4" (6.4mm)
• Stainless Rivet & Steel Mandrel: 3/16" (4.8mm)
• Stainless Rivet & Stainless Mandrel: 3/16" (4.8mm)
• Includes Mandrel Sizes 2.4, 3.2, 4.0, 4.8, 6.0 & 6.4mm
• Stainless Rivet & Stainless Mandrel: 3/16" (4.8mm)
• Includes Mandrel Sizes 2.4, 3.2, 4.0, 4.8, 6.0 & 6.4mm
