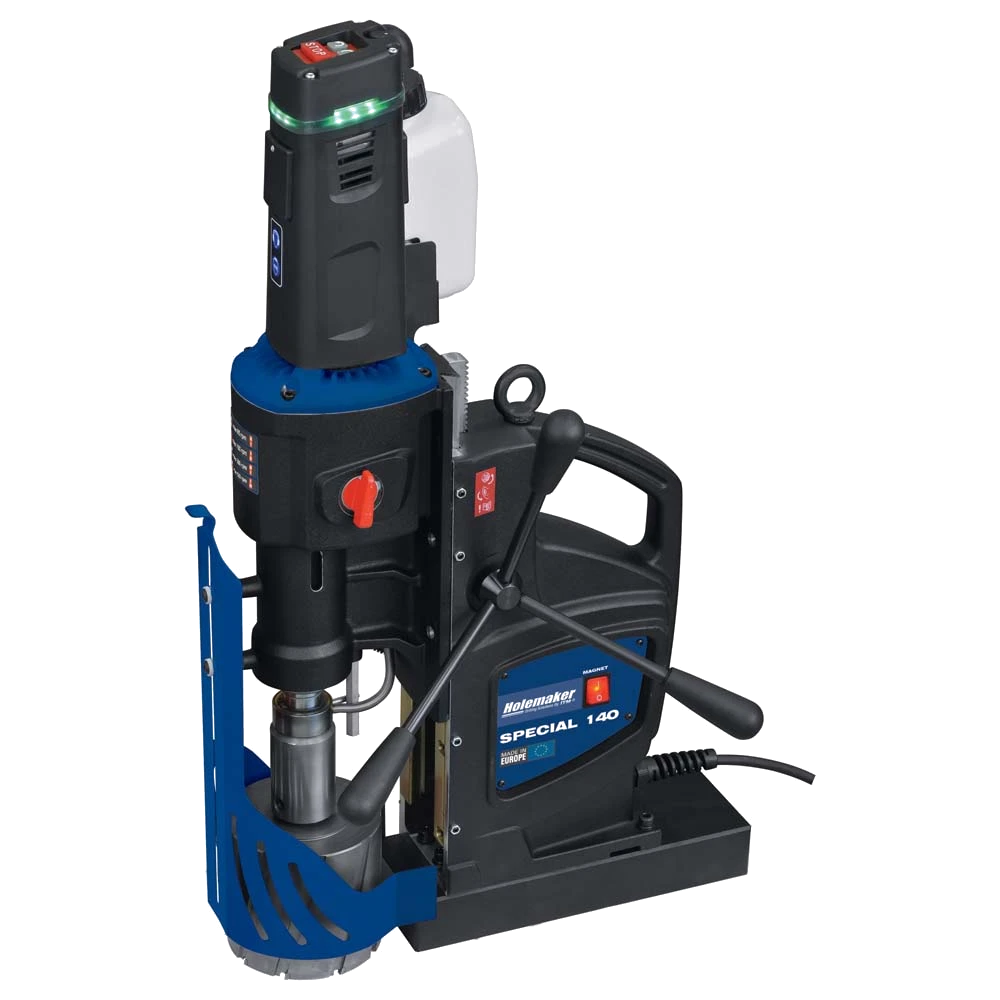

4MT Capacity 140mm Dia. x 110mm DOC HMSPECIAL140 | Holemaker Special 140 Magnetic Base Drill 2150W/4 Speed Features #4 MORSE TAPER HEAVY DUTY DRILLING & TAPPING MACHINE The Holemaker Special 140 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M42 of through holes and M33 blind holes.

• New generation Italian made motor

• Intelligent speed control system maintains stable speed regardless of load changes

• Electronic Variable Speed Control

• Electronic clutch

• Overload and Overheat protection

• Tilt sensor stops the motor in cases of machines break away

• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes

• Intuitive control panel at top of the drill

• Very light weight

• Supplied in a metal carry case with cutter guard & safety strap Specifications

• Capacity ( Diameter ): 140mm

• Capacity ( Depth ) : 110mm

• Twist drill capacity: 47mm

• Tap capacity: M42

• #4 Morse Taper spindle

• 2150 Watt 240V motor

• 4 Speed variable gearbox (55-85 / 100-150 / 200-300 / 350-520rpm)

• Lightweight, only 31kg

• 25000Nm Magnetic dead lift on 25mm steel plate

• 260mm Stroke

• Height 655mm min / 915mm max
