ITM Concrete Lifting Clutch Panel Lifter 5T Features

• Specifically designed for lifting precast concrete elements with an embedded pin

• Easily engages under load, ensuring proper connection

• Simple clutch release when lifting completed

• Available in working load limits ranging from 1.3t to 20t

• Tested and certified to AS 3850.1 Specifications

• W.L.L. (t): 5

• B.L. (t): 20

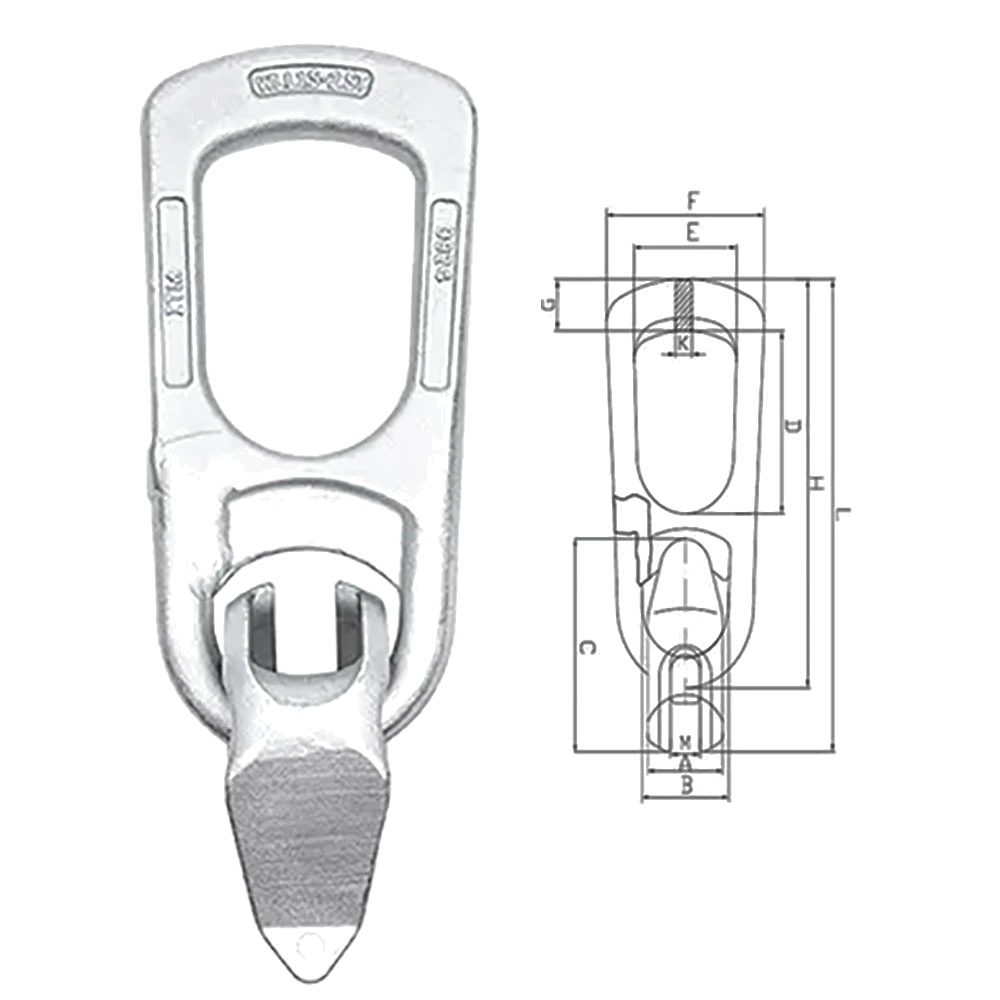

• Dimension A (mm): 55

• Dimension B (mm): 70

• Dimension C (mm): 133

• Dimension D (mm): 88

• Dimension E (mm): 69

• Dimension F (mm): 110

• Dimension H (mm): 242

• Dimension M (mm): 22

• Dimension L (mm): 282

• Dimension G (mm): 35

• Dimension K (mm): 18

• Weight (kg): 3.24
