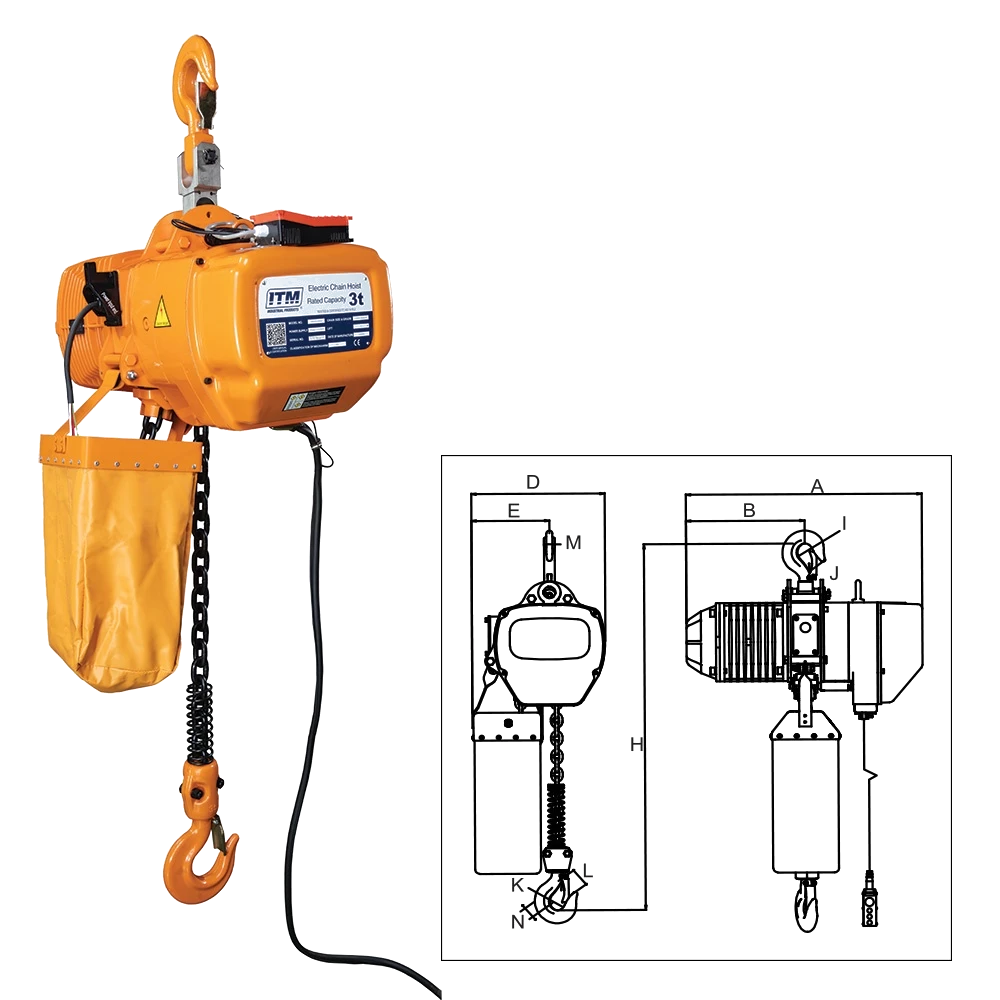

ITM Electric Hoist, 415V, 3 Ton, 3 Meter Lift Features

• Japanese technology with dual braking system to ensure safe and reliable operation

• Dual Speed

• Compact and light weight design

• Weight overload limiter for safety

• Dual-gear drive system providing smooth and quiet operation

• Three phase, 415V motor

• Upper and lower limit switches to prevent chain runout

• Chain length can be altered by ITM to your required length

• Tested & certified to AS 1418.2

• Test certificate & user manual supplied

• Replacement Chain 7.1mm TM9810-01607-1

• Replacement Chain 11.2mm TM9810-04011-2 Specifications

• Rated Capacity: 3 Tonne

• Standard Lift: 3m

• Running Test Load: 37.5kN

• Motor: 3000W 415V 3P

• No. of Chain Drops: 1

• Chain Type: Grade 80 11.2mm

• Lift Speed: 5.4 & 1.8m/min

• Net Weight: 122kg

• Extra Weight Per Metre Of Extra Lift: 2.8kg Dimensions (mm)

• A: 670

• B: 313

• D: 430

• E: 265

• H: 845

• I: 58

• J: 47

• K: 58

• L: 47

• M: 36

• N: 36
