HIKMICRO LYNX 2.0 LH19 19mm 384x288 12mic <20mK Thermal Monocular

Hunting & Shooting > Night Vis & Thermal > Bino/Monocular

LYNX 2.0 LH19 19mm 384x288 Mono

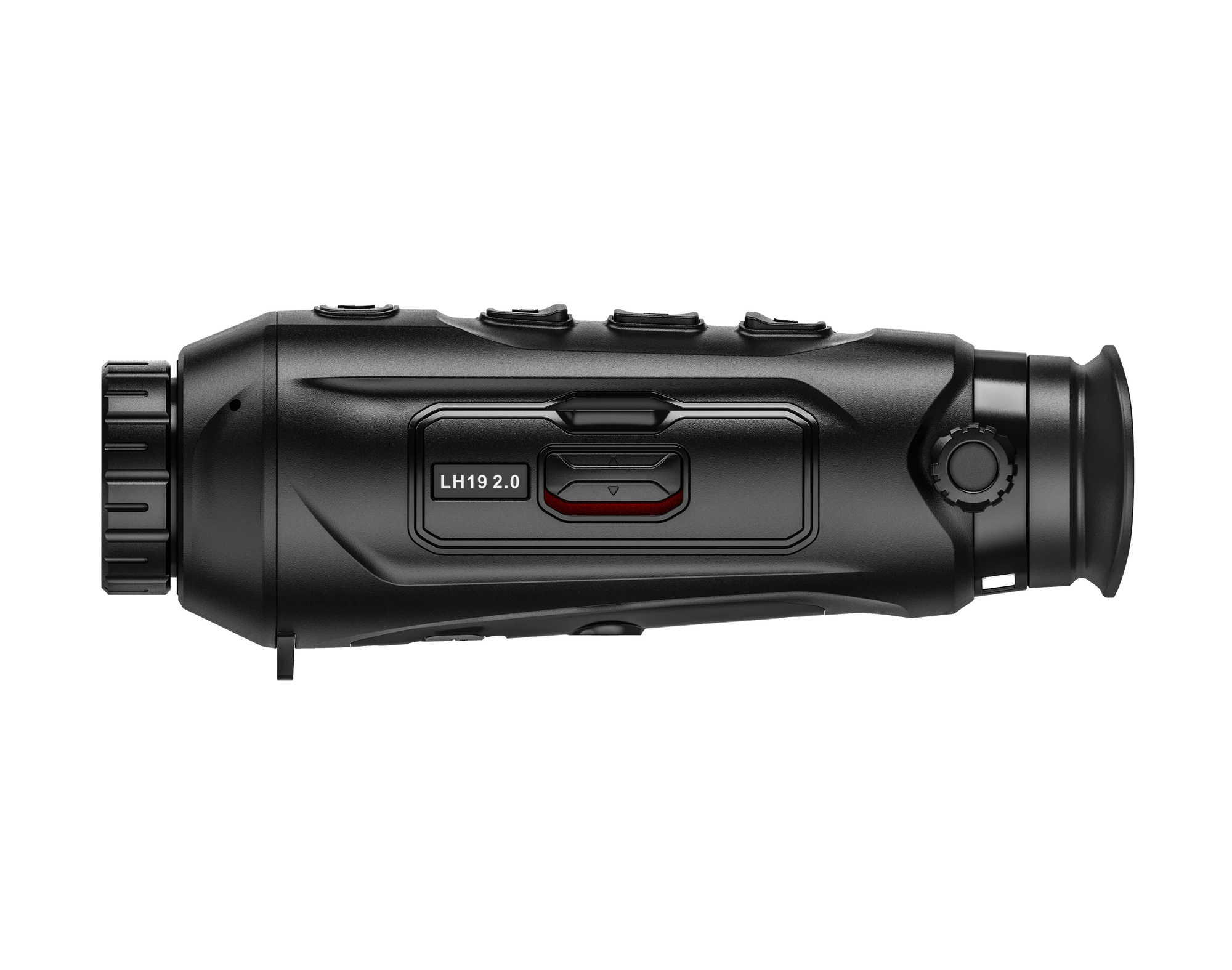

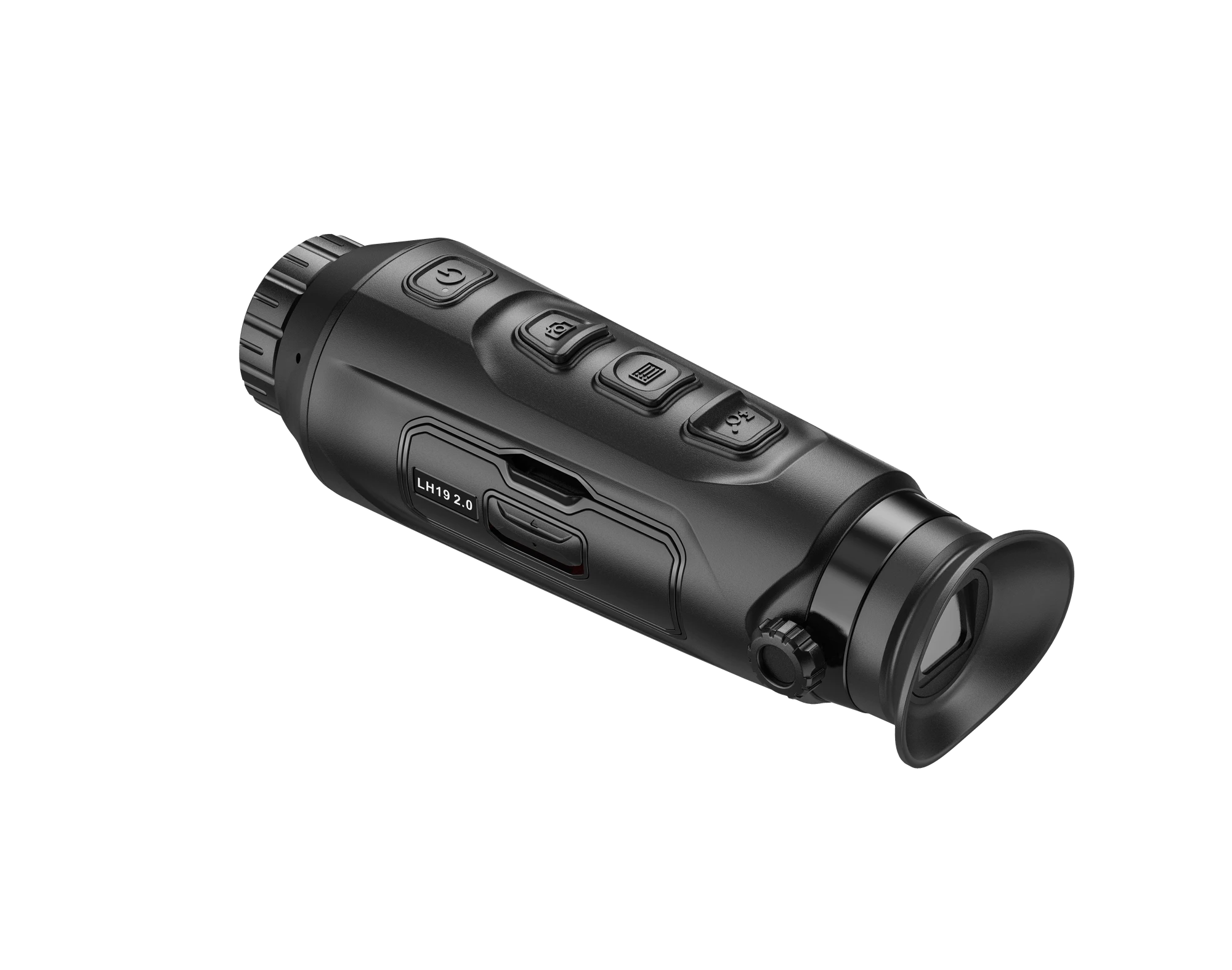

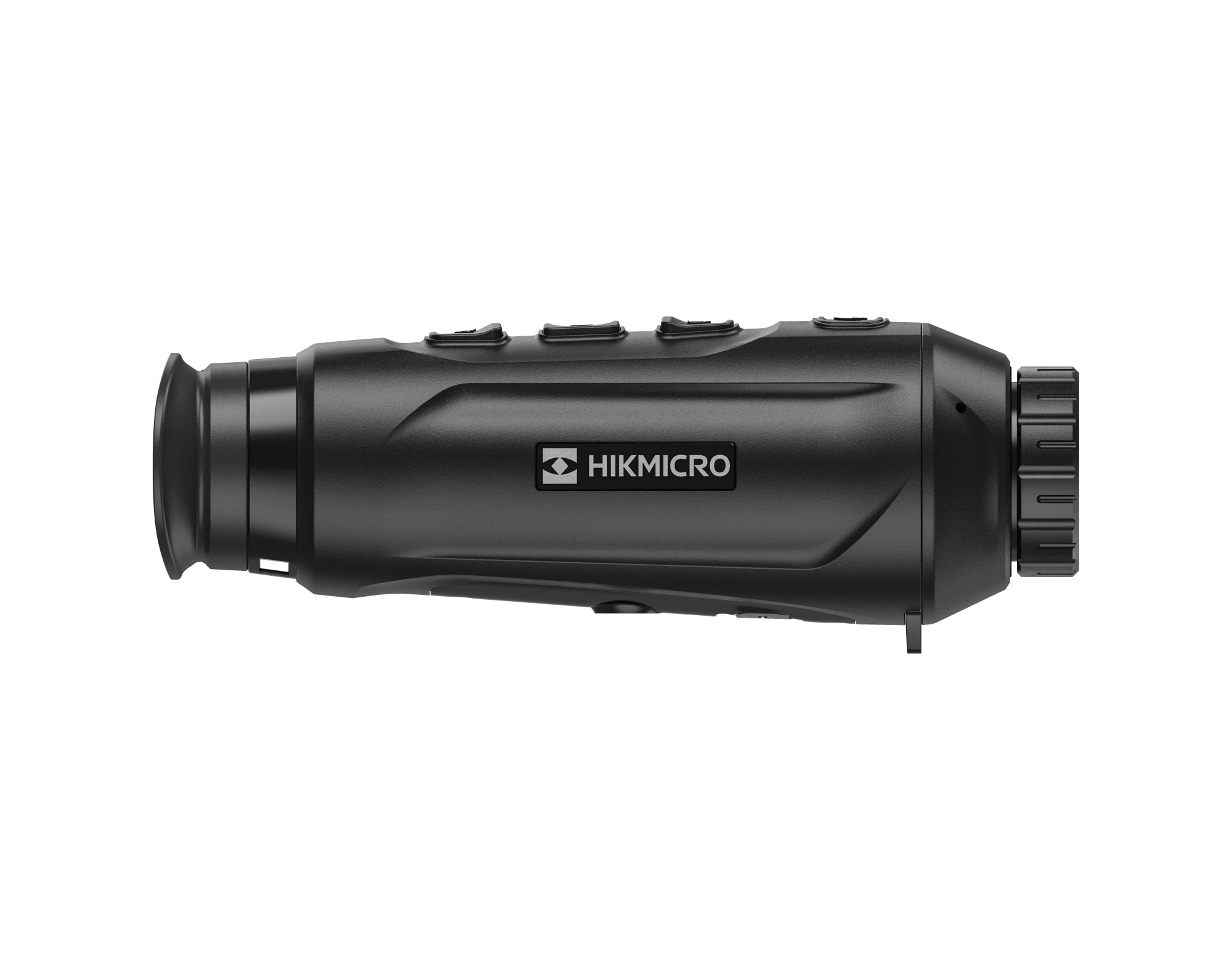

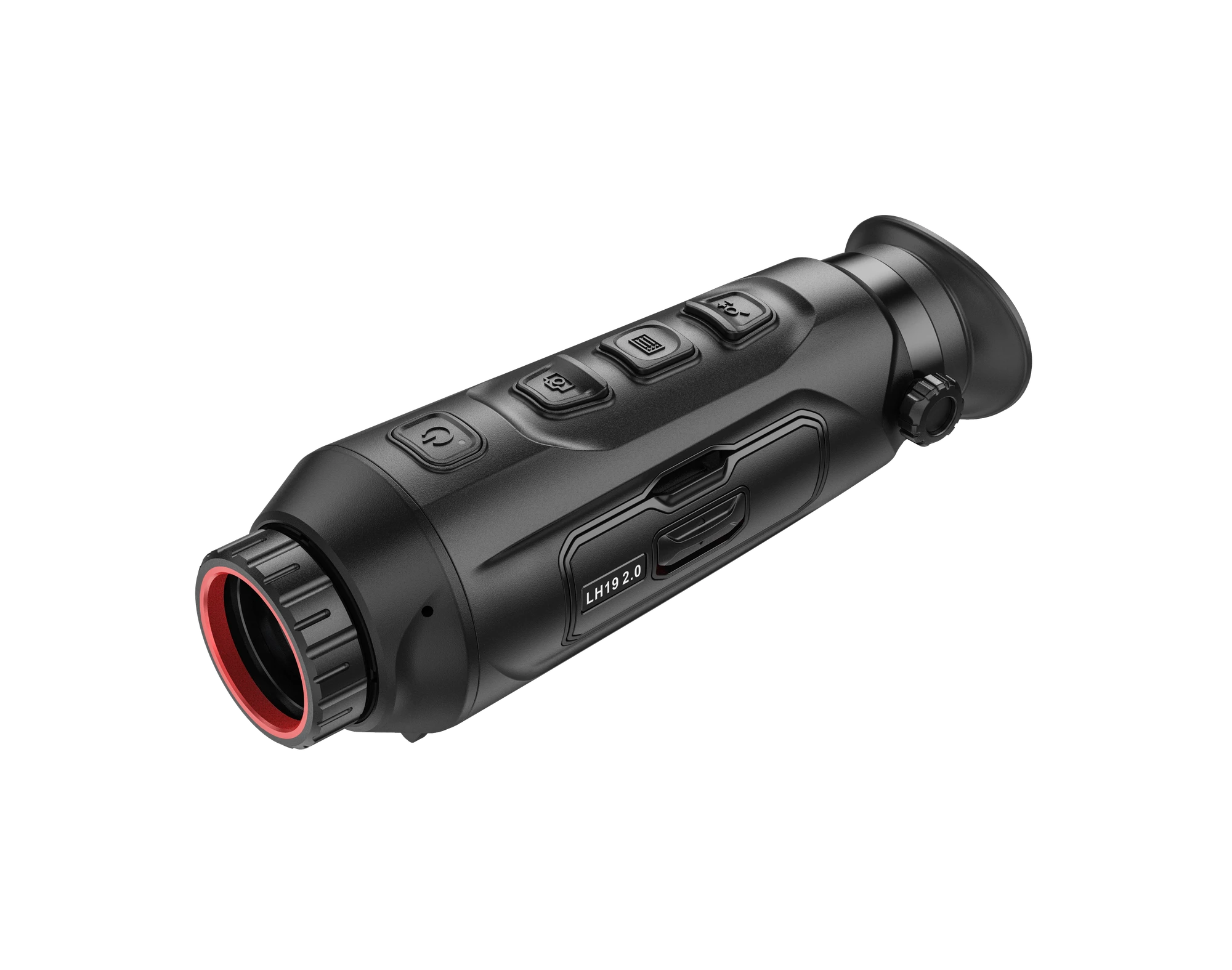

HIKMICRO LYNX 2.0 LH19 19mm 384x288 12mic <20mK Thermal Monocular

$2,199.00

Product Details

Description

Lightweight & Compact Compact and light with a very comfortable and robust feel to it, the LYNX Monocular has the ultimate thermal performance housed in a small package. With advanced engineering, the refresh rate is smooth and fast – eliminating the need for recalibration as you scan your hunting zone.

Specifications

With its high thermal sensitivity of NETD < 20mK and 384 VOx sensor, the HIKMCRO LYNX LH19 2.0 ensures the production of harmonious and detailed images.

Experience control with the manual focus feature, allowing you to precisely adjust the image to the exact distance.

Key Features

High sensitivity

Thermal Module NETD < 20 mK (@25°C, F# = 1.0)

384 × 288 Resolution with 12μm detector
1024 × 768 Resolution 0.39-inch OLED display
Replaceable and rechargeable Li-ion battery
280 g lightweight, with a compact and ergonomic design
Up to 6.5 hours of continuous operation Specification

Thermal Module

Image Sensor: VOx Uncooled Focal Plane Arrays
Max. Resolution: 384 × 288
Frame Rate: 50 Hz
Pixel Interval: 12 μm
Response Waveband: 8 μm to 14 μm
NETD: Less than 20 mK (@25°C), F# = 1.0
Lens (Focal Length): 19 mm, f1.0
Focus Mode: Focus Ring
Detection Range: 900 m
Min. Focusing Distance: 1.9 m
Magnification: 1.8x to 14.4x (8x)
Field of View(H × V), Degrees/ m @100m: 13.7° × 10.3°/24.0 m × 18.0 m

Image Display

Display: 1024 × 768, 0.39 inch, OLED
Palettes: Black Hot, White Hot, Red Hot, Fusion
FFC (Flat Field Correction) Mode: Auto, Manual, External Correction
Exit Pupil: 6 mm
Eye Relief: 20 mm
Diopter (Range): -5 D to +3 D
Brightness Adjustment: Yes
Tone Adjustment: Cold, Warm
Contrast Adjustment: Yes

System

Record Video: Yes
Capture Snapshot: Yes
Audio Recording: Yes
Standby Mode: Yes
Storage: Built-in EMMC (16 GB)
PIP: Yes
Hotspot: Yes
Hot Track: Yes
Distance Measurement: Yes

Power Supply

Battery Type: Replaceable and Rechargeable Li-ion Battery
Battery Operating Time: 6.5-hour continuous running with CVBS and hotspot function off (@25°C)
Type-C

Power Supply: 5VDC, 2 A

Supports External

General

Protection Level: IP67
Dimension: 172.5 mm × 56.0 mm× 60.8 mm
Weight: 282 g without battery
Working Temperature: -30°C to +55°C

Product Code:LH19 2.0

Barcode:6974004644062

Brand:Huntsman Optics

Type:Bino/Monocular

Availability:In Stock
