ITM Electric Hoist, 415V, 1 Ton, 3 Meter Lift Features

• Japanese technology with dual braking system to ensure safe and reliable operation

• Dual Speed

• Compact and light weight design

• Weight overload limiter for safety

• Dual-gear drive system providing smooth and quiet operation

• Three phase, 415V motor

• Upper and lower limit switches to prevent chain runout

• Chain length can be altered by ITM to your required length

• Tested & certified to AS 1418.2

• Test certificate & user manual supplied

• Replacement Chain 7.1mm TM9810-01607-1

• Replacement Chain 11.2mm TM9810-04011-2 Specifications

• Rated Capacity: 1 Tonne

• Standard Lift: 3m

• Running Test Load: 12.5kN

• Motor: 1800W 415V 3P

• No. of Chain Drops: 1

• Chain Type: Grade 80 7.1mm

• Lift Speed: 6.9 & 2.3m/min

• Net Weight: 61kg

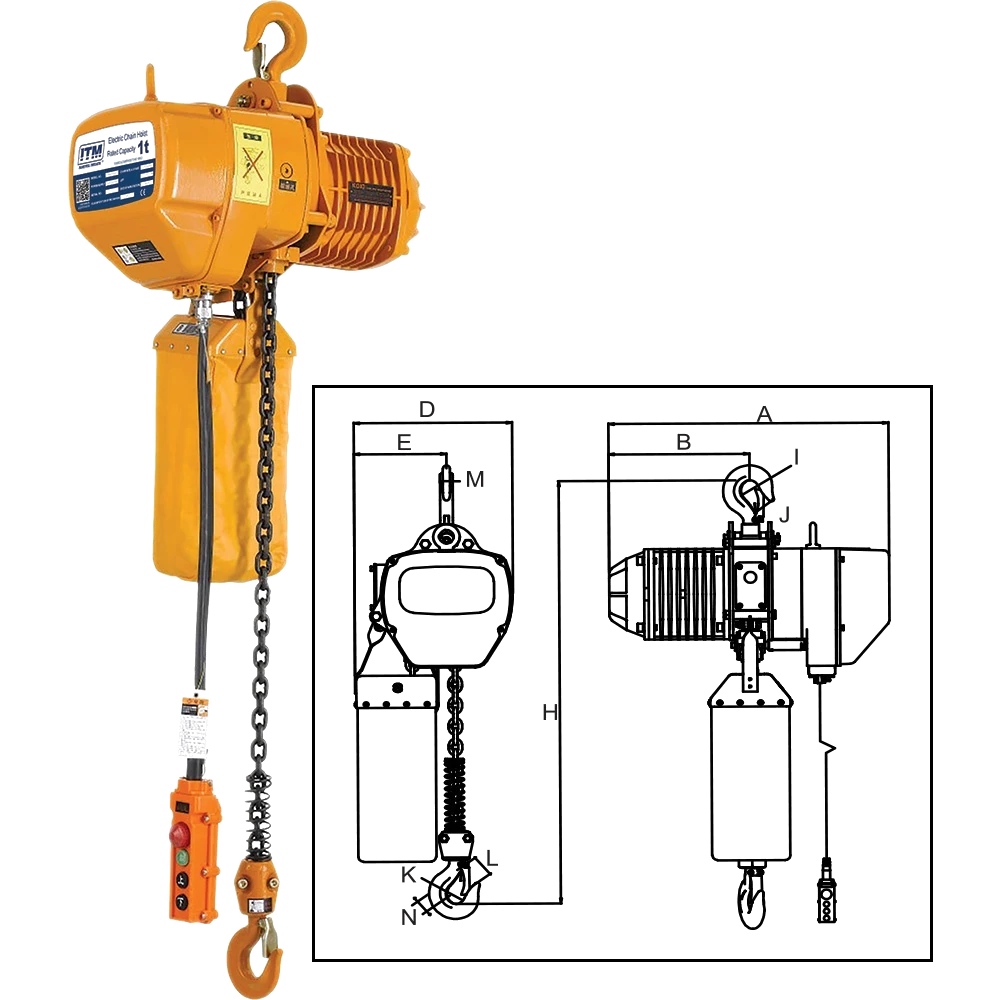

• Extra Weight Per Metre Of Extra Lift: 1.1kg Dimensions (mm)

• A: 582

• B: 280

• D: 300

• E: 176

• H: 650

• I: 40

• J: 31

• K: 40

• L: 31

• M: 22

• N: 22
