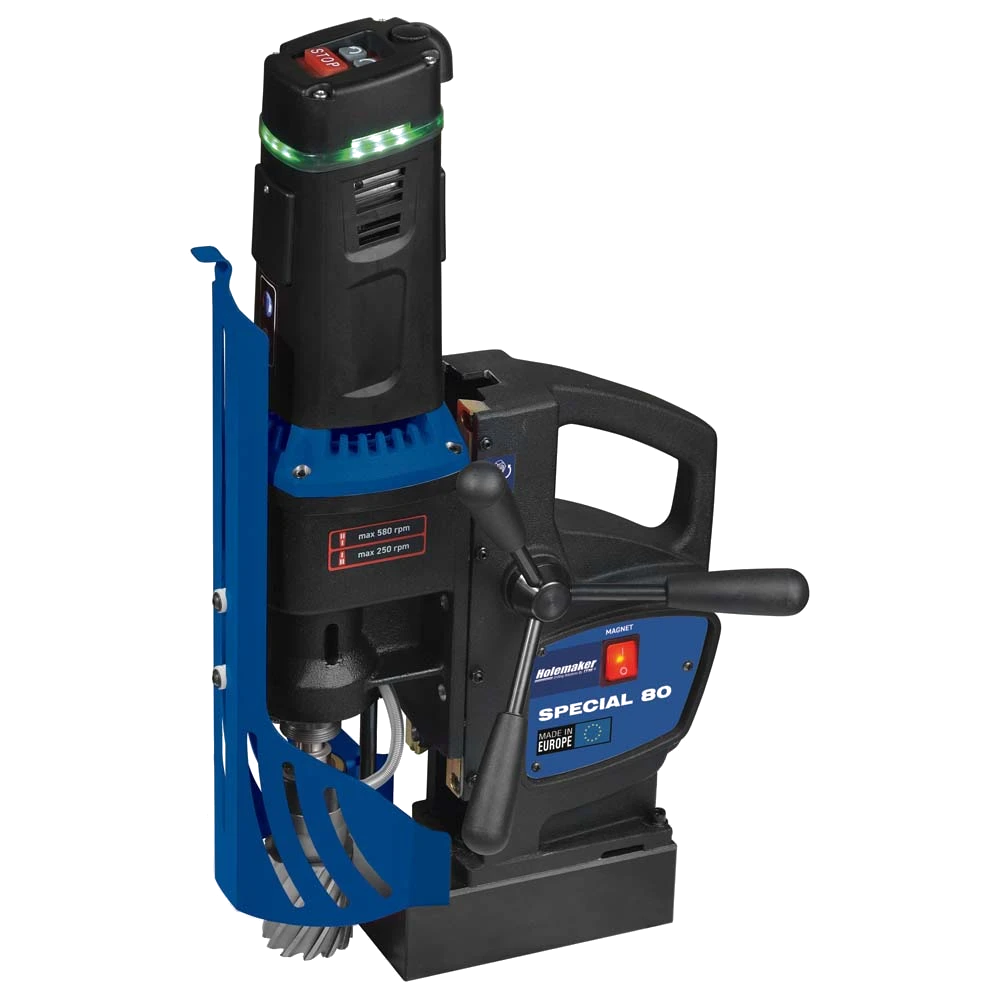

3MT Capacity 80mm Dia. x 110mm DOC HMSPECIAL80 | Holemaker Special 80 Magnetic Base Drill 1500W/2 Speed Features #3 MORSE TAPER, VERSATILE DRILLING & TAPPING MACHINE The Holemaker Special 80 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M24 of through holes and blind holes.

• New generation Italian made motor

• Intelligent speed control system maintains stable speed regardless of load changes

• Electronic Variable Speed Control

• Electronic clutch

• Overload and Overheat protection

• Tilt sensor stops the motor in cases of machines break away

• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes

• Intuitive control panel at top of the drill

• Very light weight

• Supplied in a durable blow mould carry case with cutter guard & safety strap Specifications

• Capacity ( Diameter ): 80mm

• Capacity ( Depth ): 110mm

• Twist drill capacity: 25mm

• Tap capacity: M24

• #3 Morse Taper spindle

• 1500 Watt 240V motor

• 2 Speed variable gearbox (120-190 / 290-450rpm)

• Lightweight, only 18kg

• 11000Nm Magnetic dead lift on 25mm steel plate

• 190mm Stroke

• Height 554mm min / 744mm max
