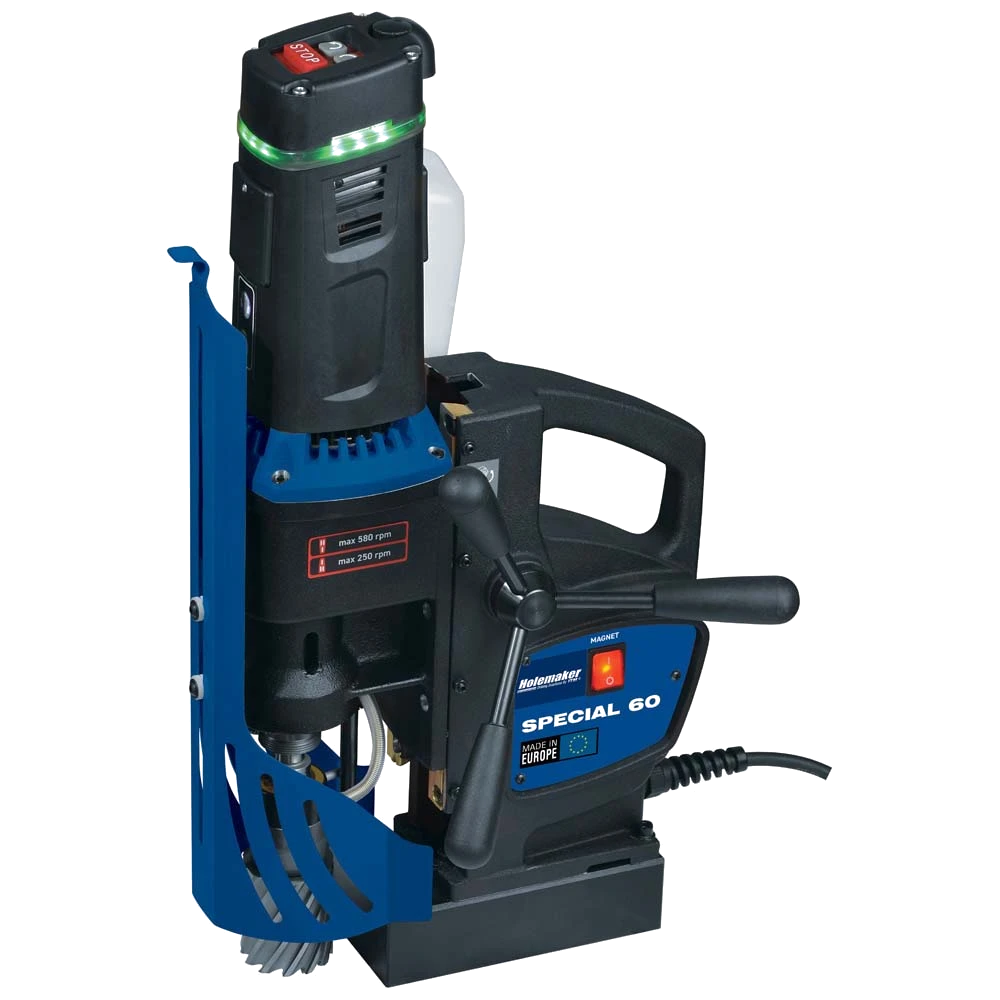

2MT Capacity 60mm Dia. x 75mm DOC HMSPECIAL60 | Holemaker Special 60 Magnetic Base Drill 1500W/2 Speed Features UNIVERSAL TAPPING & DRILLING MACHINE The Holemaker Special 60 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machine’s forward & reverse work modes with variable speed adjustment allows thread cutting up to M20 of through holes and blind holes.

• New generation Italian made motor

• Intelligent speed control system maintains stable speed regardless of load changes

• Electronic Variable Speed Control

• Electronic clutch

• Overload and Overheat protection

• Tilt sensor stops the motor in cases of machines break away

• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes

• Intuitive control panel at top of the drill

• Very light weight

• Supplied in a durable blow mould carry case with cutter guard & safety strap Specifications

• Capacity ( Diameter ): 60mm

• Capacity ( Depth ): 75mm

• Twist drill capacity: 23mm

• Tap capacity: M20

• #2 Morse Taper spindle

• 1500 Watt 240V motor

• 2 Speed variable gearbox (160-250 / 390-580rpm)

• Lightweight, only 17kg

• 11000Nm Magnetic dead lift on 25mm steel plate

• 190mm Stroke

• Height 502mm min / 692mm max
