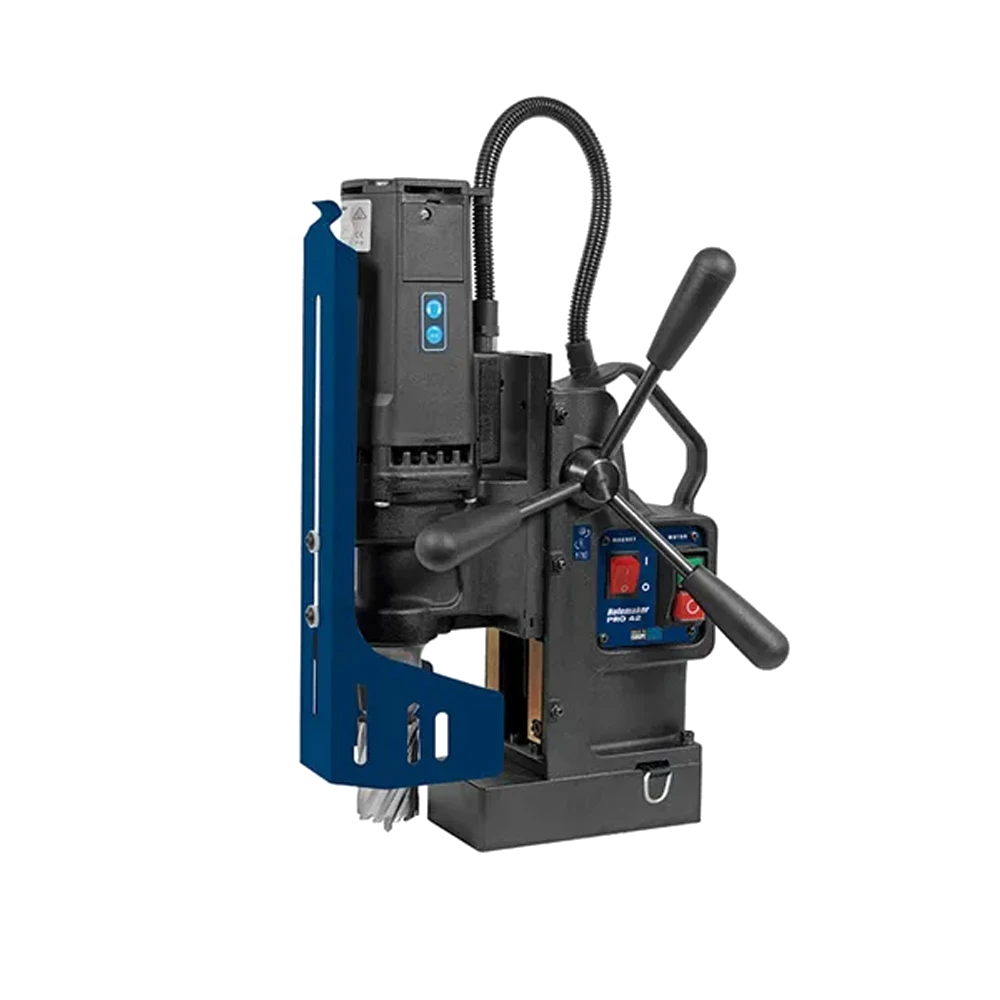

Capacity 42mm Dia. x 52mm DOC HMPRO42K1 | Holemaker PRO42 Mag Drill 1020W/440RPM - Bonus Cutter Set FEATURES New generation machines with the latest technology and design.

• New Rigid Frame Design Provides increased life of cutting tools.

• New Extra Large 165mm Stroke Enables the use of long tooling such as extension arbors and large depth cutters for drilling box section steel in one pass, twist drills, reamers, taps etc.

• Magnetic Field Shape Control (MFSC) Provides maximum holding power on thin materials.

• Lightweight & Powerful The new generation Holemaker machines are lighter and more powerful than other brands on the market. Features:

• European made machine

• Extra large 165mm stroke allowing the use of an optional 13mm twist drill chuck

• Through spindle coolant system, with an external side mounted gravity feed coolant tank

• The feed handles can be placed on either the left or right hand side, for increased versatility

• Smart magnet technology to ensure sufficient magnetic adhesion

• Integrated cutter guard for increased user safety

• Supplied in a blow mould plastic carry case

• Grub screw arbor system, which fastens positively onto Holemaker cutters

• 13mm drill chuck SADCA-13 available separately * with Bonus 5 Piece Annular Cutter Set Sizes

• 14 x 25mm

• 16 x 25mm

• 18 x 25mm

• 20 x 25mm

• 22 x 25mm

• Pilot Pin SPECIFICATIONS

• Capacity (Diameter): 42mm

• Capacity (Depth): 52mm

• Capacity (Twist Drills): 10mm (Jobber Drills)

• Capacity (Twist Drills): 13mm (Stub Drills)

• Capacity (Twist Drills): 16mm (Weldon Shank Drills)

• Motor Power: 1020 Watt

• Input Power: 1100 Watt Single Phase 240V

• Speed: 440rpm

• Weight: 12.5kg

• Magnetic Dead Lift: 9,900Nm On 25mm Steel Plate

• Stroke: 165mm

• Height (Min. / Max.): 346 / 511mm
