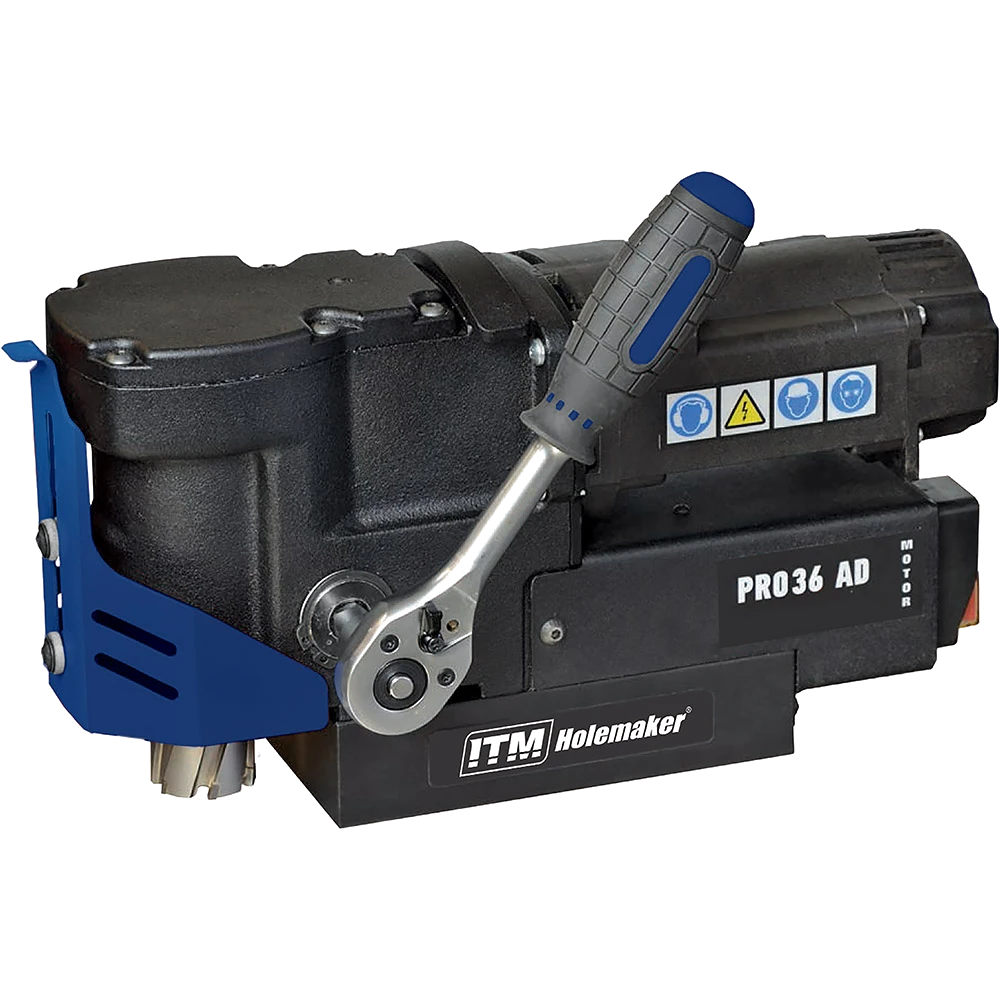

Capacity 36mm Dia. x 30mm DOC HMPRO36AD | Holemaker PRO36AD Magnetic Base Angle Drill 240V Features The PRO 36 AD is an ultra-low profile mag drill, that fits in the tightest of spots. Perfect solution for any applications in confined spaces, where typical mag drills are too large. A powerful motor and strong electromagnetic base enable drilling of holes up to 36mm diameter to a depth of up to 30mm (1-3/16"). PRO-36 AD accepts both TCT and HSS cutters as well as twist drill drills with 19,05 mm (3/4") Weldon shank.

• Ultra-low profile mag drill of 176mm height only.

• Extremely low weight of just 9.5 kg (21 lbs).

• Milling capacity up to 36 mm (1-7/16”).

• Accepts also twist drills with 19,05 mm (3/4”) Weldon shank.

• Stroke – 39 mm.

• Integrated swarf guard.

• Detachable feed lever (feat. ratchet) can be fixed from either side.

• Lifting handle for easy transportation.

• Cooling with a bottle Specifications

• Capacity ( Diameter ): 36mm

• Capacity ( Depth ): 30mm

• Capacity ( Twist Drill ): 12mm

• Motor Power: 920 watt

• Input Power: 1000 watt Single Phase 240V

• Speed: 370rpm

• Weight: 9.5kg

• Magnetic Dead Lift: 8900Nm On 25mm Steel Plate

• Stroke: 39mm

• Height: 176mm Constant Working Height

• Through Spindle Coolant System

• Smart Magnet Technology To Ensure Sufficient Magnetic Adhesion

• Comes complete in plastic carry case
