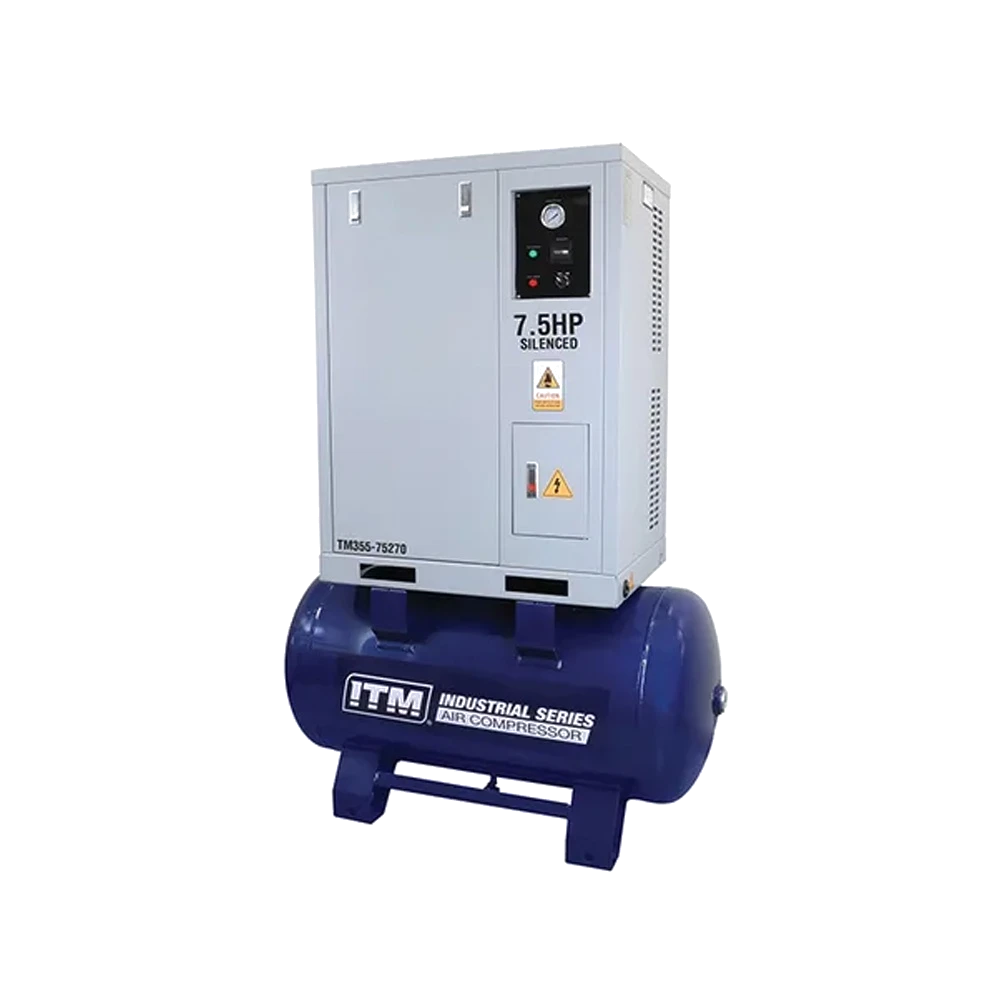

ITM Air Compressor, Silenced Cabinet 3 Phase, 7.5hp, 270L, Fad 580 L/Min Features

• ITM Silent Series Piston Compressors offer a convenient design to combine the quiet operation of a screw compressor with the cost benefits of a traditional piston compressor. For situations where compressors are used extensively while being installed close to the workplace, the ITM silent range offers an ideal match. These pumps are designed to run at a slower speed to reduce noise and combine this with a sound proof cabinet, compact design and easy to use control panel, the range combines ultimate efficiency with user friendliness.

• Triple cast iron cylinder oil lubricated pump with aluminium head

• Powerful high efficiency induction motor

• Soft start valve for electric motor protection

• Thermal overload protection with manual reset

• Full brass non-return valve

• Certified safety valve

• Reliable Condor pressure switch Specifications

• Motor: 7.5HP - Three Phase 415V

• Tank Capacity: 270 L

• Max Pressure: 147 PSI (10 Bar)

• Pump Displacement: 900 L/min (31.8 CFM)

• Free Air Delivery: 595 L/min (21.1 CFM)

• Pump RPM: 950

• Noise: 65dB at 7m

• Compressor Dimensions: 135cm L x 75cm W x 180cm H
