$4.36

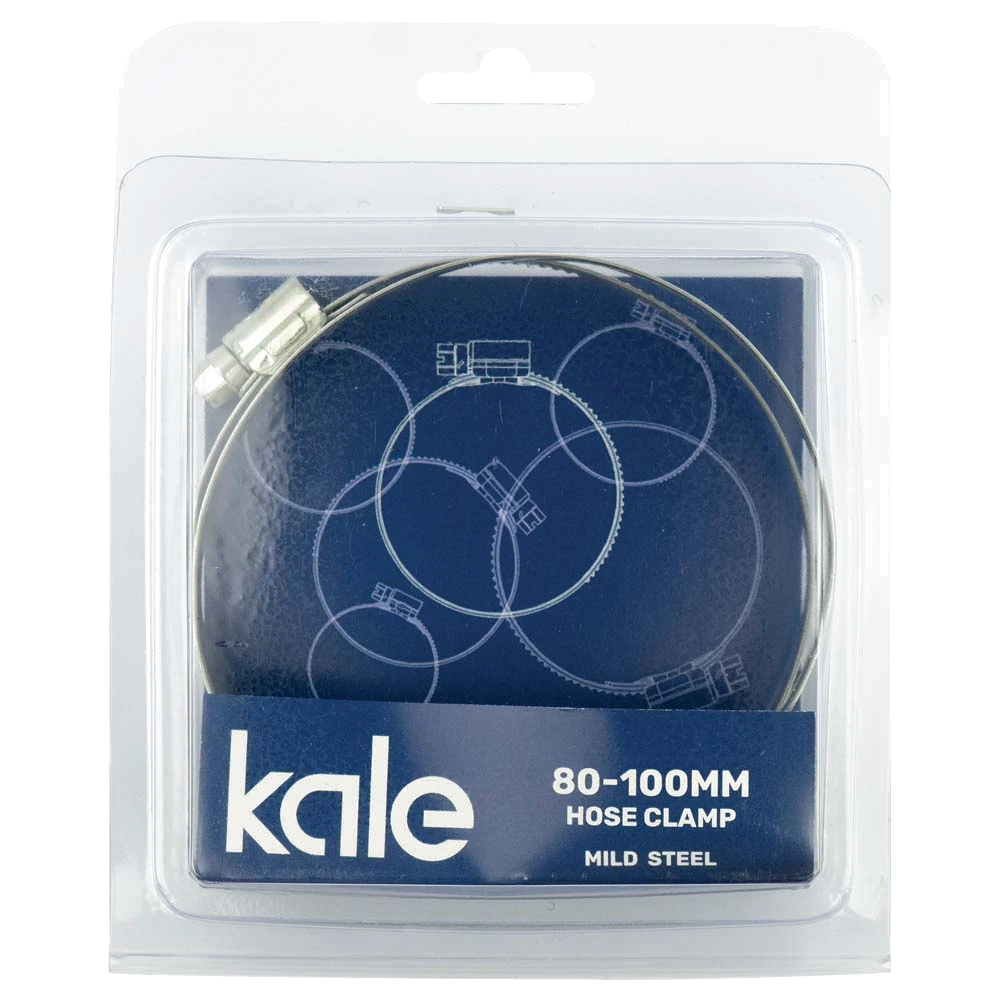

WD - Worm Drive Clamp Blister Pack WD1280100W1R | Kale WD12 80-100mm W1-R (2pk) WD12 | 80-100mm Capacity | W1 Features:
• Light product, easy assembly and space saving with compact housing and screw design.
• Stronger and durable with the mechanically locked single piece design of housing.
• Burr-free and convex band edges.
• 100% traceability on the product.
• High clamping force with low tightening torque.
• Higher tightening torque and clamping force with 12mm band width. Technical Spec:
• Band Width - 12mm
• Capacity (min - max) - Ø 80-100mm
• Tightening Torque (max) - 5.0Nm (1)
• Screw Housing Length - 24mm
• Grade W1 - Screw, Band & Housing (2)
• Corrosion Resistance (min.Hour) IS0 9227 - 72
• Screw Head - FL | 7mm Hex (1) Recommended tightening torque. Recommended tightening speed 300 - 350 rpm (2) Screw & Housing (Zinc Plated) | Band – Mild Steel (Zinc Plated) KALE is certified with ISO TS 16949, ISO 9001, ISO 14001 management systems as per the expectations of the global automotive industry.
